PURE SINE WAVE INVERTER

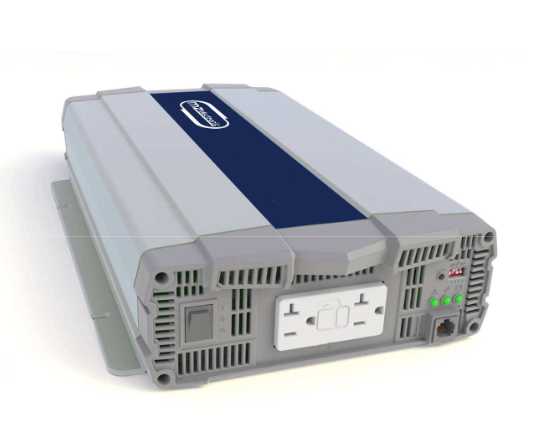

Pure sine wave inverter

The unit is a highly reliable DC-AC inverter system, designed with advanced
power electronic and microprocessor technology offering the following features:
– Pure sine wave output (THD < 5%) to operate
– Optional bypass relay (TR-40) function
– Intelligent software for power management
– Loading and temperature controlled cooling fan
– CR-8/CR-16 remote management and control
– RS-232 communication
– Dry contact terminal
– Efficiency max. 90%
– Advanced Protection Features

Input over/under voltage protection, Internal over temperature protection, Input
reverse polarity protection (Fuse), Output overload protection, Output short circuit protection.

Opis

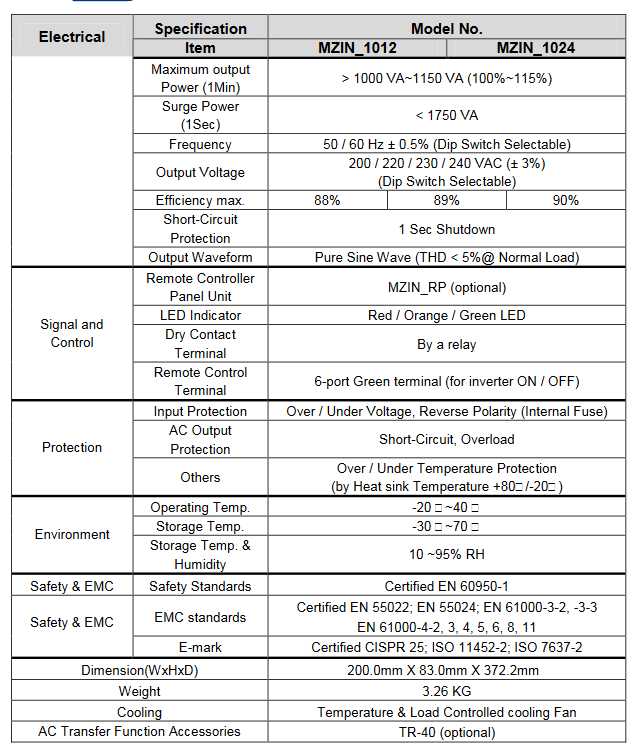

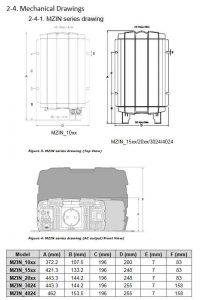

MZIN_1012	inverter DC-AC	12V	1000W	2,3 Kg	372 mm	200 mm	83 mm
MZIN_1024	inverter DC-AC	24V	1000W	2,3 Kg	372 mm	200 mm	83 mm

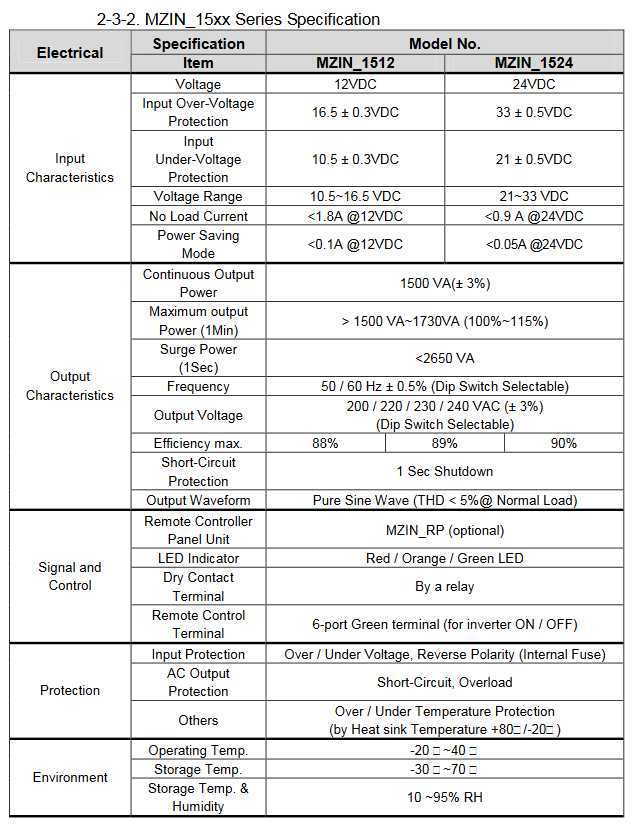

MZIN_1512	inverter DC-AC	12V	1500W	4,2 Kg	421 mm	248 mm	83 mm
MZIN_1524	inverter DC-AC	24V	1500W	4,2 Kg	421 mm	248 mm	83 mm
MZIN_2012	inverter DC-AC	12V	2000W	5,4 Kg	443 mm	248 mm	83 mm
MZIN_2024	inverter DC-AC	24V	2000W	5,4 Kg	443 mm	248 mm	83 mm

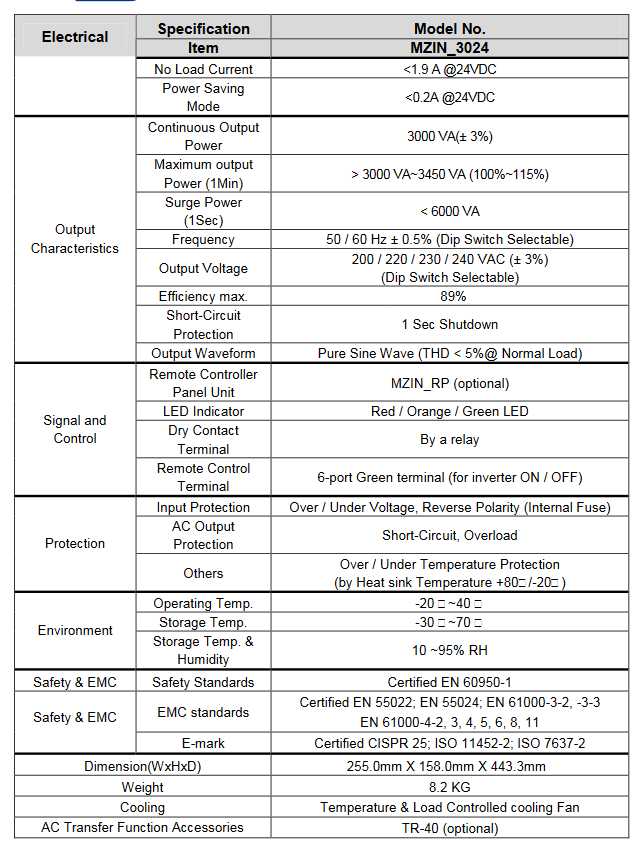

MZIN_3024	inverter DC-AC	24V	3000W	8,2 Kg	443 mm	255 mm	158 mm

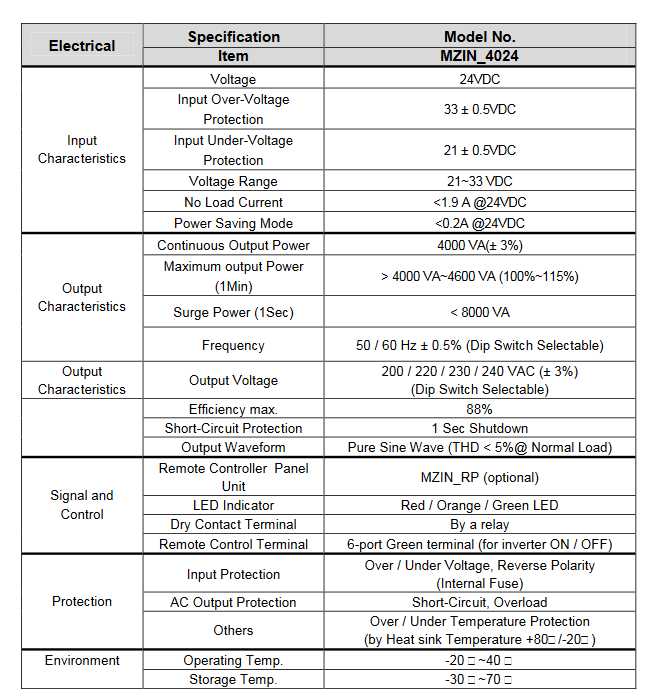

MZIN_4024	inverter DC-AC	24V	4000W	10,0 Kg	462 mm	255 mm	158 mm

The unit is a highly reliable DC-AC inverter system, designed with advanced power electronic and microprocessor technology offering the following features: Pure sine wave output (THD < 5%) to operate Optional bypass relay (TR-40) function

Intelligent software for power management Loading and temperature controlled cooling fan MZIN_RP remote management and control RS-232 communication Dry contact terminal Efficiency max. 90% Advanced Protection Features Input over/under voltage protection Internal over temperature protection Input reverse polarity protection (Fuse) Output overload protection Output short circuit protectio.
