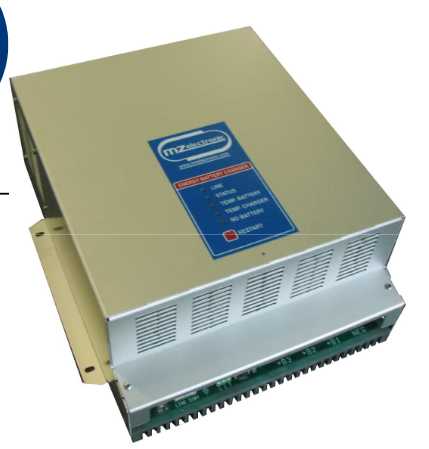

The battery chargers series OCEAN are studied in order to cover the high load requirements maintaining elevated performances and total security. This series of battery chargers is the natural evolution of the previous one and introduces several innovations.
SOME OF THE MOST IMPORTANT TECHNICAL FEATURES:

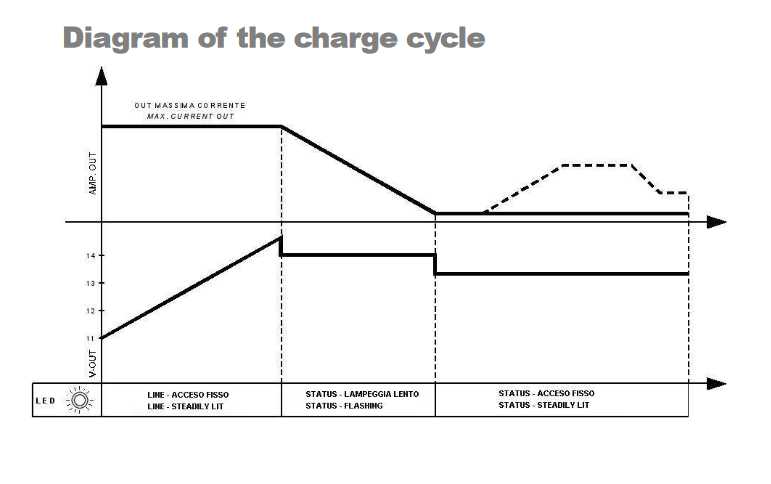

– Three stage battery charging
– Multiple outputs for charging more than one group of batteries
– Different type of charge (electrolite battery, gel battery)
– Battery temperature control with sensor (optional)
– Possibility to use the battery charger as a power supply
– Automatic cooling fan control by microprocessor
– Alarms on anomalous battery charge times
PROTECTIONS
– Output short circuit
– Internal overheating
– Battery overheating
– Input overvoltage
– Input overcurrent

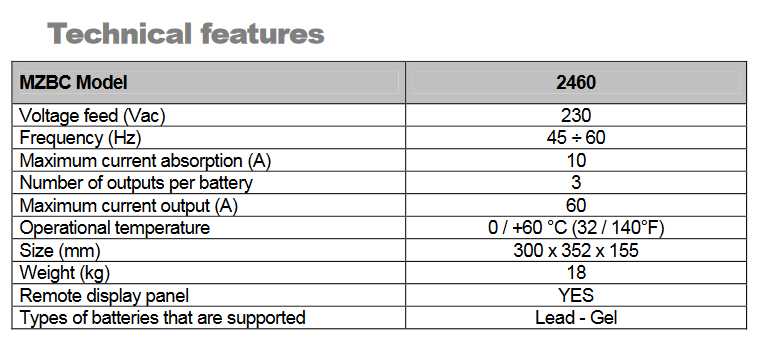

| MAX OUTPUT CURRENT | 50A 24V |
| NUMBER OF OUTPUTS | 3 |
| SUPPLY VOLTAGE | 230V (-10%, +15%) |
| FREQUENCY | 45 – 60Hz |
| CHARGE ABSORBTION VOLTAGE AT | 27,6V for lead / 28,4V for gel |
| CHARGE FLOAT VOLTAGE | 27,2V for lead / 27,4V for gel |
| MAX ABSORPTION 230VaC | 8A |
| COOLING | Forced with controlled fan |

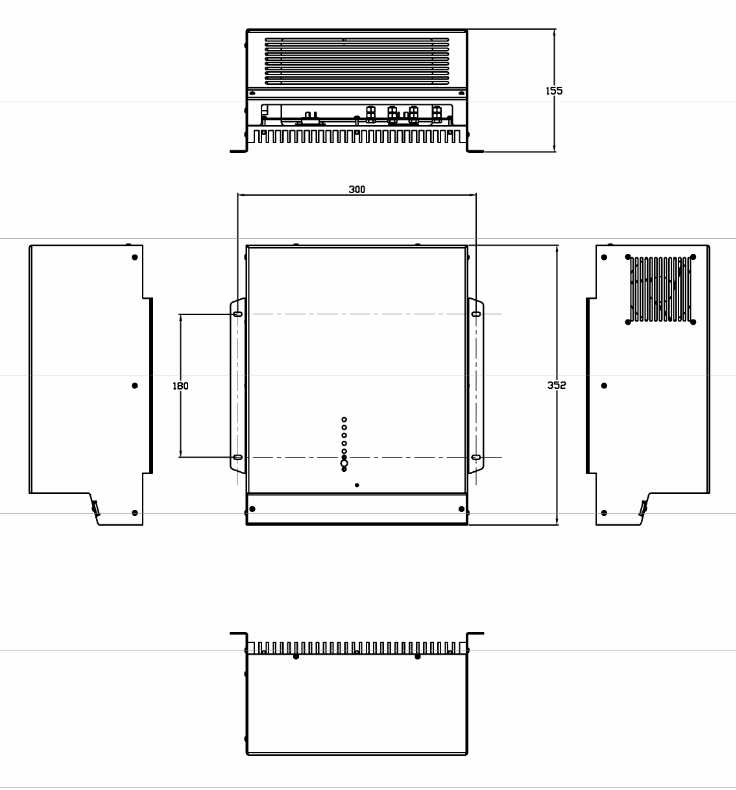

| DIMENSIONS (L x H x D) | 300 x 352 x 155mm |
| WEIGHT | 19,5 Kg |
