CHARGE DISTRIBUTORS

Charge distributors

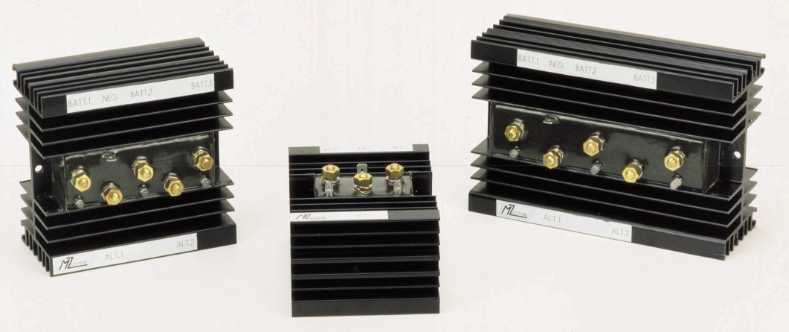

The MZ charge distributors offer an enhanced efficiency of the battery charge from the alternator thanks to a very low voltage drop. Available in five models to satisfy any requirement they are composed by light anodized alloy heat sinks which enable an efficient heat dispersion even at maximum current.

Opis

CODE	N. ALTERNATORS	N. EXIT	DIODE CONTROL	MAX CURRENT FOR EXIT	MAX ALTERNATOR CURRENT
RP 1250NC	1	2	NO	60A	100A

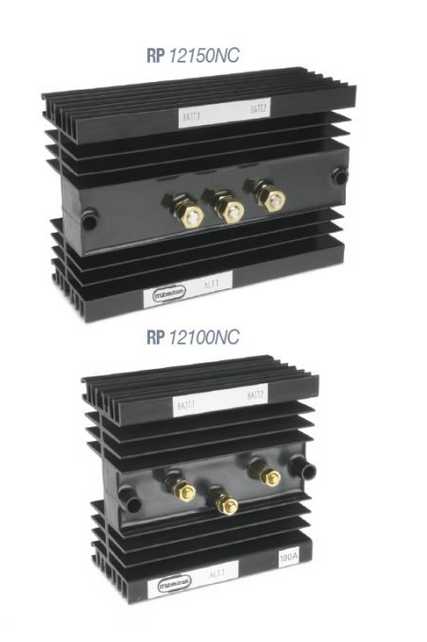

RP 12100NC	1	2	NO	120A	140A
RP 12150NC	1	2	NO	180A	200A
RP 23100NC	2	3	NO	120A	200A

ALWAYS DISCONNECT THE BATTERY BEFORE MAKING INSTALLATION OPERATION.Position the distribution frame far away from heat sources and fix it on one vertical wall by means of the two screws provided with the finning in vertical sense. Connect the positive of the alternator at ALT. (1\2) and the positive poles of the battery to the distribution frame terminals. Connect the negative faston of the distribution frame to the negative of the system with a 1,5 section cable.
