IDHRA

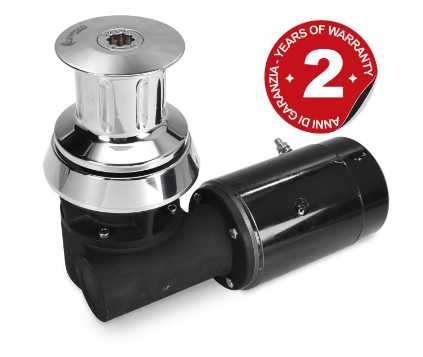

Anodized aluminium alloy capstan winch with different groove to wind greater amounts of rope. With different drives and recommended for boats up to 18 m.

Capstan winch for recovering the tender boat with anodized aluminium drum already set for belt and snap-hook fastening. Not supplied as standard with the product.

Kategorija: Oznaka:

Opis

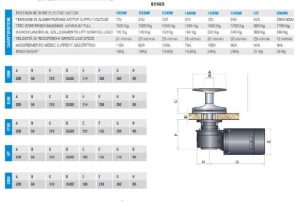

ELECTRIC MOTOR1000W1000W1500W1500W1700W1700Whydraulic
MOTOR SUPPLY VOLTAGE12V24V12V24V12V24VN/A
MAXIMUM PULL1020 Kg1060 Kg1250 Kg1290 Kg1650 Kg1700 Kg380 Kg
LIFT WORKING LOAD130 Kg140 Kg150 Kg160 Kg220 Kg240 Kg380 Kg
LINE SPEED25 mt/min25 mt/min26 mt/min26 mt/min26 mt/min26 mt/min26 mt/min
CURRENT ABSORPTION115 A60 A130 A70 A185A90AN/A
WEIGHT (WITH DRUM)N/AN/AN/AN/AN/AN/AN/A
WEIGHT (WITHOUT DRUM)19 Kg19 Kg19,6 Kg19,6 Kg24 Kg24 Kg21 Kg
