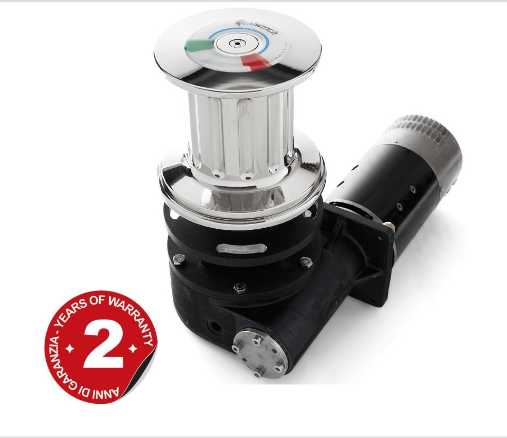

MILOS – MILOS PLUS – MILOS TALL

Stainless steel AISI 316 capstan winch, with different drives and recommended for boats up to 40 m (Milos Plus). Possibility of 230V, 400V or hydraulic drive.



Kategorija: Oznaka:

Opis

MILOS

ELECTRIC MOTOR3500W3000W4000WHydraulic
MOTOR SUPPLY VOLTAGE24V230V/400V230V/400VN/A
MAXIMUM PULL2000 Kg4000 Kg4500 Kg1900 Kg
LIFT WORKING LOAD900 Kg1100 Kg1300 Kg1900 Kg
LINE SPEED12 mt/min12 mt/min12 mt/min12 mt/min
CURRENT ABSORPTION195 AN/A220 AN/A
WEIGHT (WITHOUT DRUM)55 Kg–> 70 Kg55 Kg–> 70 Kg55 Kg–> 70 Kg55 Kg–> 70 Kg55 Kg–> 70 Kg



MILOS PLUS

ELECTRIC MOTOR3500W4000W5500WHydraulic
MOTOR SUPPLY VOLTAGE24V230V/400V230V/400VN/A
MAXIMUM PULL4600 Kg4700 Kg5000 Kg1700 Kg
LIFT WORKING LOAD1500 Kg1600 Kg1700 Kg1700 Kg
LINE SPEED12 mt/min12 mt/min12 mt/min12 mt/min
CURRENT ABSORPTION195 AN/AN/AN/A
WEIGHT (WITHOUT DRUM)75 Kg–> 95 Kg75 Kg–> 95 Kg75 Kg–> 95 Kg75 Kg–> 95 Kg



MILOS TALL

ELECTRIC MOTOR3500W4000W5500W7500WHydraulic
MOTOR SUPPLY VOLTAGE24V230V/400V230V/400V230V/400VN/A
MAXIMUM PULL4600 Kg4700 Kg5000 Kg5200 Kg1900 Kg
LIFT WORKING LOAD1500 Kg1600 Kg1700 Kg1800 Kg1900 Kg
LINE SPEED12 mt/min12 mt/min12 mt/min12 mt/min12 mt/min
CURRENT ABSORPTION195 AN/AN/AN/AN/A
WEIGHT (WITHOUT DRUM)75 Kg–> 95 Kg75 Kg–> 95 Kg75 Kg–> 95 Kg75 Kg–> 95 Kg75 Kg–> 95 Kg
