NC 360-560

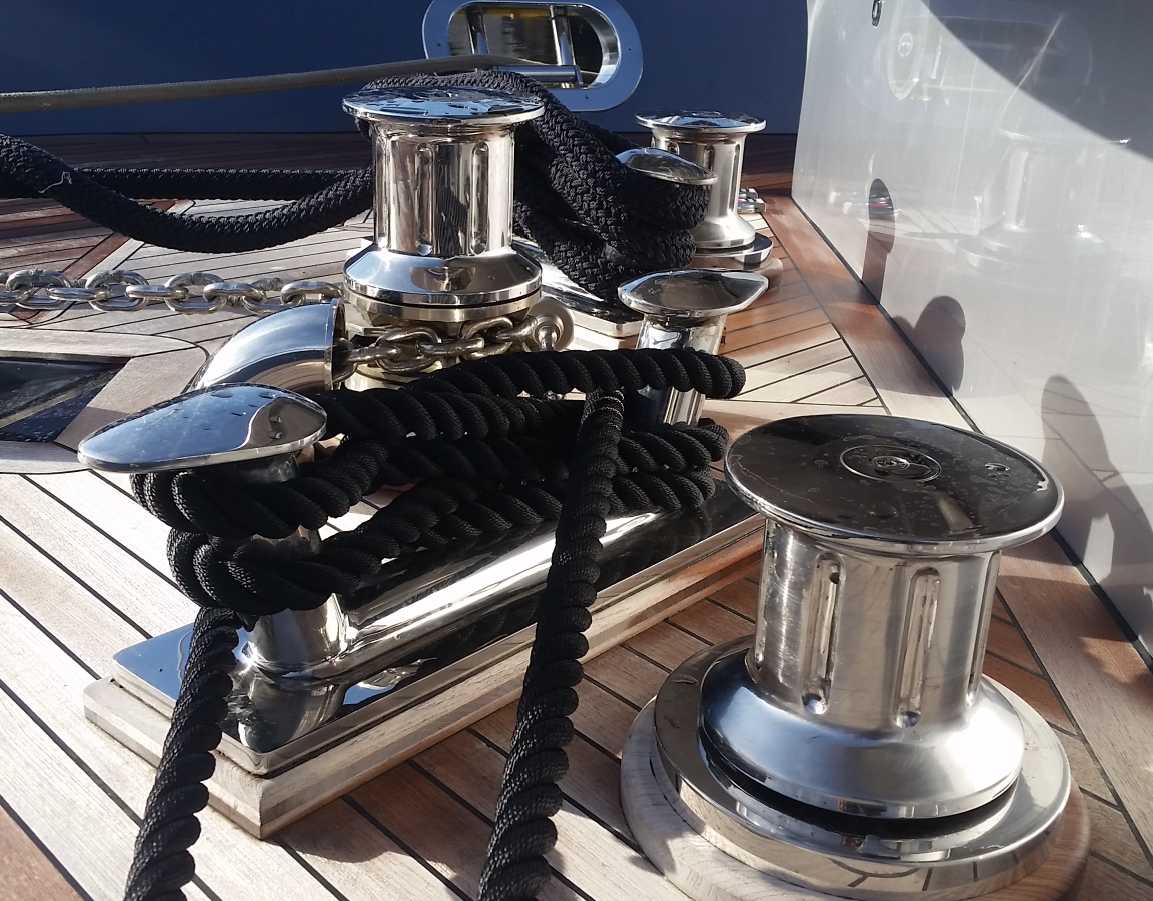

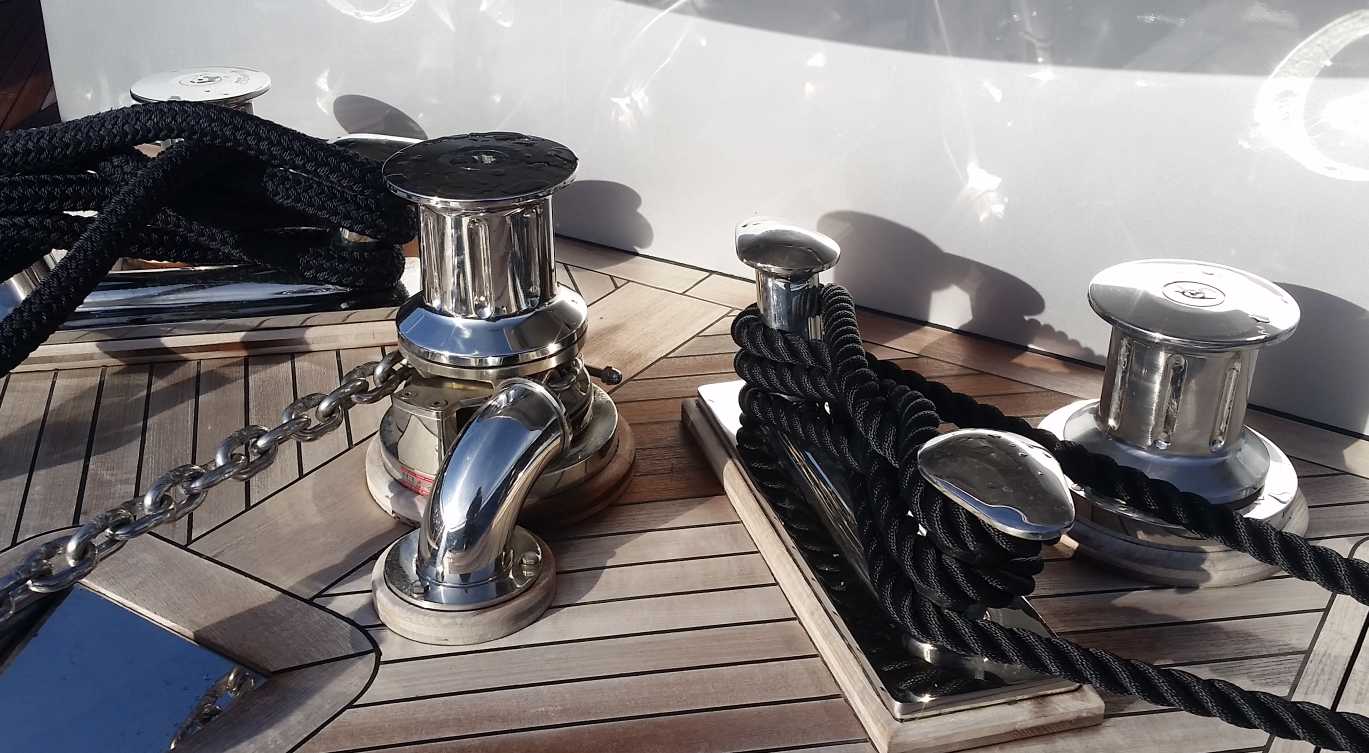

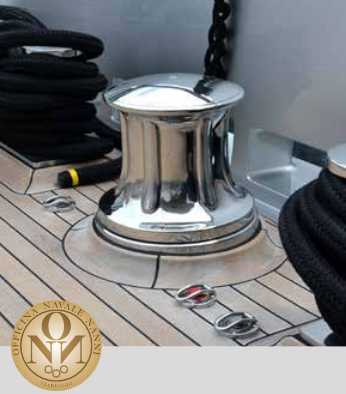

Stainless steel AISI 316 capstan winch, with different drives and recom-mended for boats up to 100m. Possibility of 230V, 400V or hydraulic drive.

Kategorija: Oznaka:

Opis



ELECTRIC MOTOR7500W9200W11000W15000W18500W22000WHY1HY2
MOTOR SUPPLY VOLTAGE230V/400V230V/400V230V/400V230V/400V230V/400V230V/400VN/AN/A
MAXIMUM PULL7075 KG9056 KG10827 KG14765 KG15866 KG18851 KG4528 KG9425 KG
LIFT WORKING LOAD3537 KG4528 KG5413 KG7382 KG7933 KG9425 KG4528 KG9425 KG
LINE SPEED12 mt/min12 mt/min12 mt/min12 mt/min13 mt/min13 mt/min12 mt/min13 mt/min
