Opis
| for boats from 6 to 7 meters (20 – 29 ft) | |||
| TB2 | 500 W | 6 – 7 m | 20 – 29 ft |
The indication may vary according to the boat type

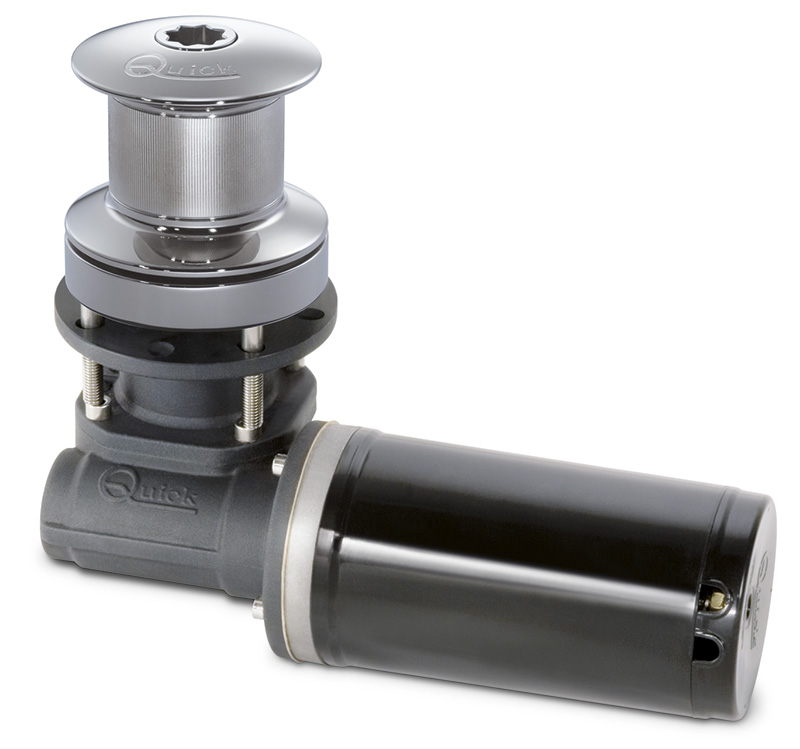

| Standard version | TB2 500 | |
| Motor power | 500 W | |
| Motor supply voltage | 12 V | 24 V |
| Maximum pull | 660 Kg / 1455 lb | |
| Maximum working load | 200 Kg / 441 lb | 220 Kg / 485 lb |
| Working load | 65 Kg / 143,3 lb | 70 Kg / 154,3 lb |
| Current absorbtion @ working load (1) | 80 A | 40 A |
| Maximum chain speed (2) | 29 m/min 95,1 ft/min | 29 m/min 95,1 ft/min |
| Maximum chain speed @ working load (2) | 19 m/min 62 ft/min | 21,7 m/min 71,2 ft/min |
| Ø Drum | 105 mm / 4″ 9/64 | |
| Weight | 7,6 Kg / 16,8 lb | |
