UCP – Sea water condensed chiller systems

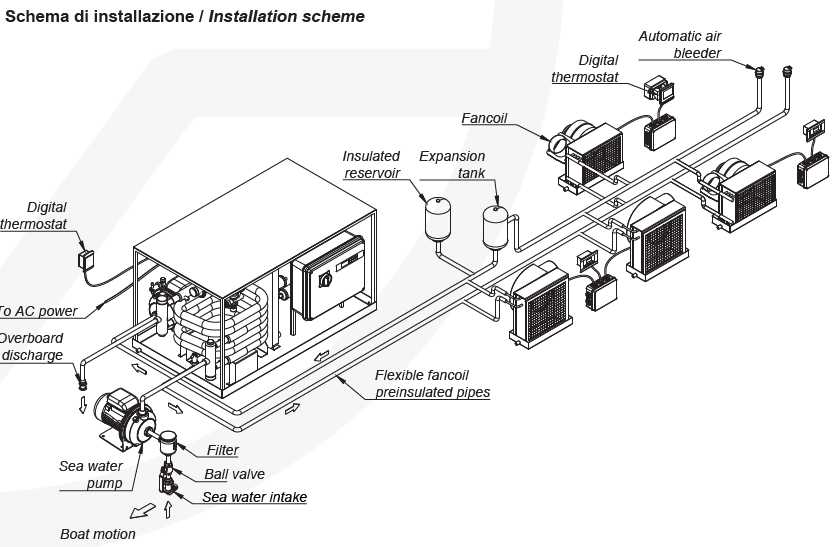

UCP is Thermowell’s series of sea water condensed chiller systems, available both in cooling only and heat pump version, specifically designed for installation into the biggest vessels. UCP chillers are used to cool / heat a water – glycol mixing which flows through a net of insulated pipes reaching every ambient inside the vessel where a fan coil is installed. Compact in sizes and easy in handling and maintenance, these units are the best choice for new and used or under refitting vessels.

Kategorija: Oznaka:

Opis

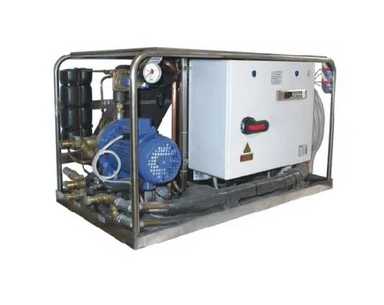

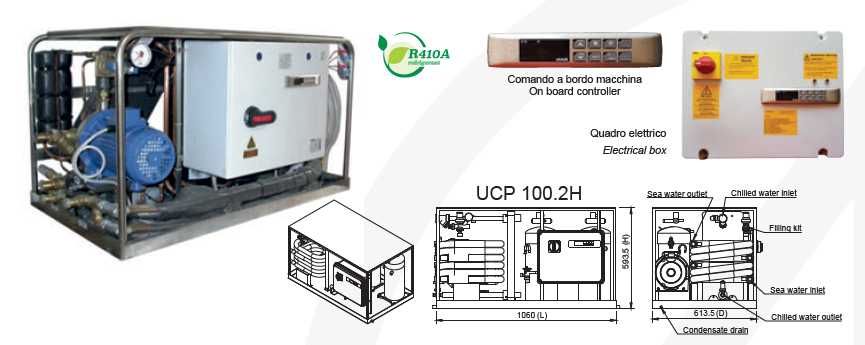

UCP are available in 12 sizes, from 16,000 up to 150,000 BTU/h cooling power, in cooling only version or heat pump version with reverse cycle. All components (high efficiency and noiseless compressors, corrosion resistant copper-nickel condenser, high and low pressure switches, thermostatic expansion valves) are assembled on a 100% stainless steel case which assures a long life service and the collection of great quantity of condensate. In order to make installation of the air conditioning system as simple is possible, these units are supplied with a certain number of accessories already built-in, such as fresh water circulation pump, fresh water tank, expansion vessel, filling kit with manometer, sea water pressure sensor, automatic bleed valve.

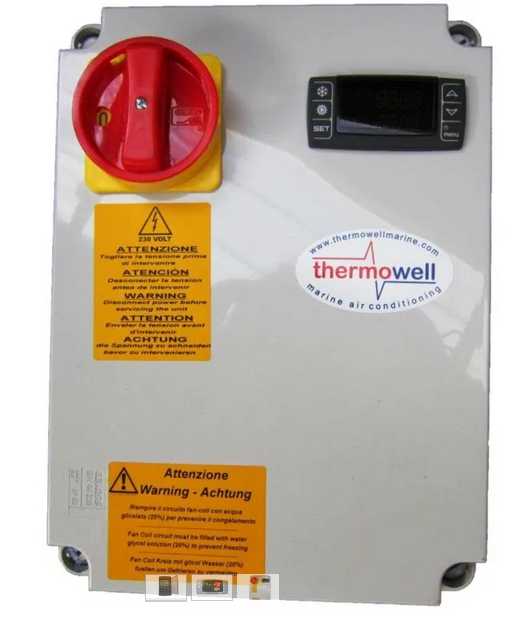

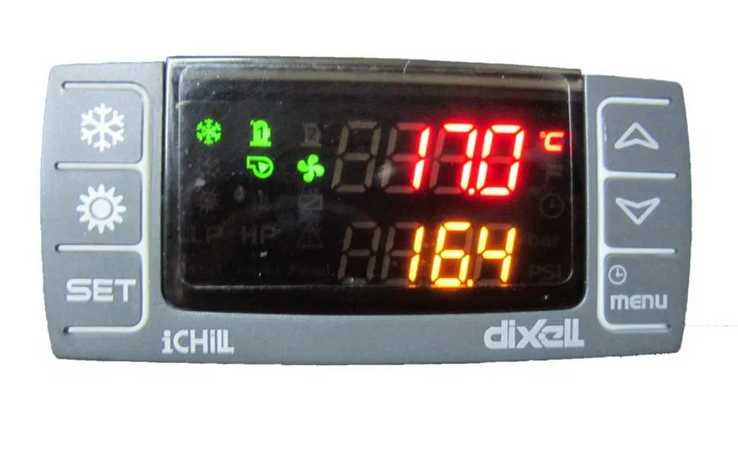

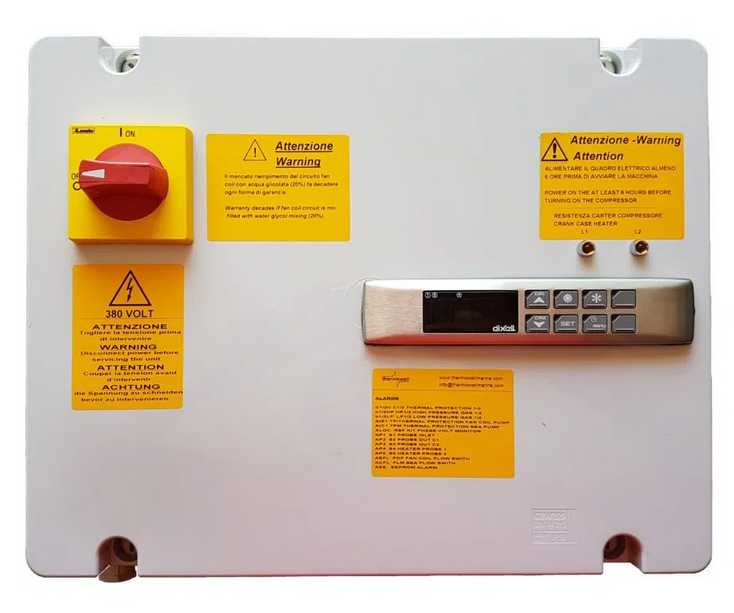

These units are equipped with a highly innovative electronic controller (eventually remotable for installation into the pilothouse or other technical rooms) which manages all the functions of the chiller as well as the failures diagnostics through well-defined alarm codes. Each unit is pre-charged, leak checked and tested in all operating modes at the most critical conditions. All Thermowell marine air conditioners are filled up with environmentally friend green refrigerant R410A and no further charge is required before the installation on board. Thermowell supplies also all the items for the installation on board of the whole air conditioning system, in order to get a full customization (grilles, ducts, pumps, strainers…).

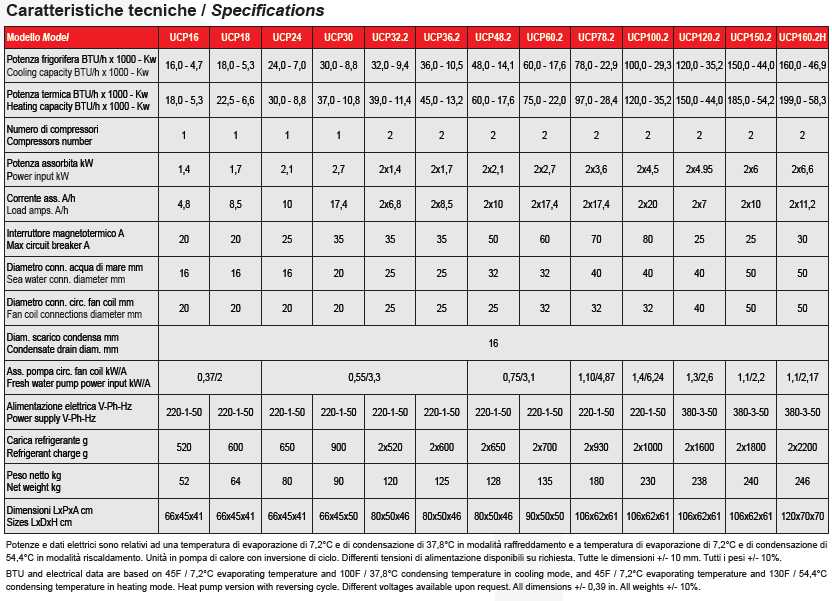

ModelUCP16UCP18UCP24UCP30UCP32.2UCP36.2UCP48.2UCP60.2UCP78.2UCP100.2UCP120.2UCP150.2UCP160.2H
Nominal cooling capacity BTU/h – W16000 – 469018000 – 527024000 – 703030000 – 879032000 – 938036000 – 1055048000 – 1407060000 – 1759078000 – 22860100000 – 29300120000 – 35170150000 – 43960160000 – 46890
Nominal heating capacity BTU/h – W/td>18000 – 528022500 – 659030000 – 879037000 – 1084039000 – 1143045000 – 1319060000 – 17585875000 – 2198097000 – 28430120000 – 35170150000 – 43960185000 – 54220199000 – 58320
Compressors number1111222222222
Power supply V-Ph-Hz220-1-50220-1-50220-1-50220-1-50220-1-50220-1-50220-1-50220-1-50220-1-50220-1-50380-3-50380-3-50380-3-50
Compressors power input W17001900240039002×17002×19002×24002×30002×40002×45002×55002×67002×7200
Max circuit breaker A20202535353550607080252530
Compressors load amps. A7,98,710,114,82×7,92×8,72×10,12×132×172×202×122×142×16
Sea water connections diameter mm16161620252532324040405050
Fan coil connections diameter mm20202020252525323232405050
Condensate drain diam. mm16161616161616161616161616
Fresh water pump power input kW/A0,37/20,37/20,55/3,30,55/3,30,55/3,30,55/3,30,75/3,10,75/3,11,10/4,871,4/6,241,5/2,41,32/2,161,1/2,17
Refrigerant charge g5206006509002×5202×6002×6502×7002×9302×10002×16002×18002×2200
Sizes LxDxH cm66x45x4166x45x4166x45x4166x45x5080x50x4680x50x4680x50x4690x50x50106x62x61106x62x61106x62x61106x62x61120x70x70
Net weight kg52648090120125128135180230238240246
