BB – Direct expansion split systems

BB is the range of splitted direct expansion and sea water condensed marine air conditioners, ideal for cooling/heating one or more contiguous cabins into small/medium vessels (8-18 m). BB’s are available in 6 sizes, from 8,000 up tp 24,000 BTU/h cooling power, in cooling only version, heat pump version with reverse cycle, or equipped with electric heater. BB series has an extremely light and compact design for easy installation and service. These air conditioners are made by two key components: condensing and ventilating unit. Usually the condensing unit is placed into the engine room, thus isolating the compressor noise, while the ventilating one is installed into one cabin, thus minimizing the volume required inside the living ambients. These two components are joined between them through insulated copper refrigerant pipes (2.5 m long pipes are supplied with the unit as standard). All components (high efficiency and noiseless compressors and blowers, corrosion resistant copper-nickel condenser, high and low pressure switches) are assembled on a 100% stainless steel case which assures a long life service and the collection of great quantity of condensate.

Opis

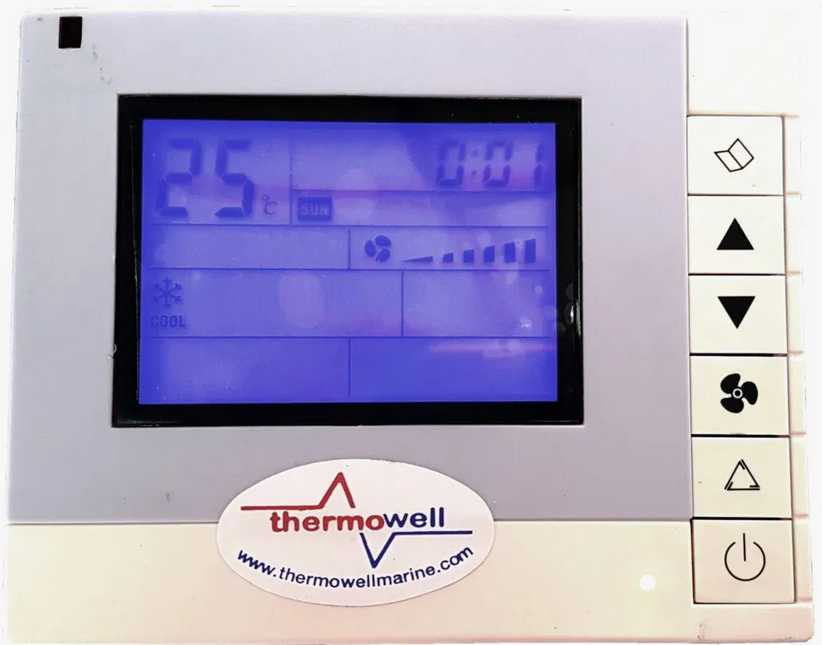

For an immediate use, these air conditioners are equipped with a LCD back-lighted digital control panel and a practical infra-red remote controller, both supplied as standard components. The electronic controller has a highly innovative PC board which manages all the functions of the air conditioner (temperature setting, fan speed, operation mode…) as well as the failures diagnostics through well-defined alarm codes. The best quality of the treated air is assured by the installation of an easily removable and washable filter. Each unit is pre-charged, leak checked and tested in all operating modes at the most critical conditions. All Thermowell marine air conditioners are filled up with environmentally friend green refrigerant R410A and no further charge is required before the installation on board. Thermowell supplies also all the items for the installation on board of the whole air conditioning system, in order to get a full customization (grilles, ducts, pumps, strainer…).

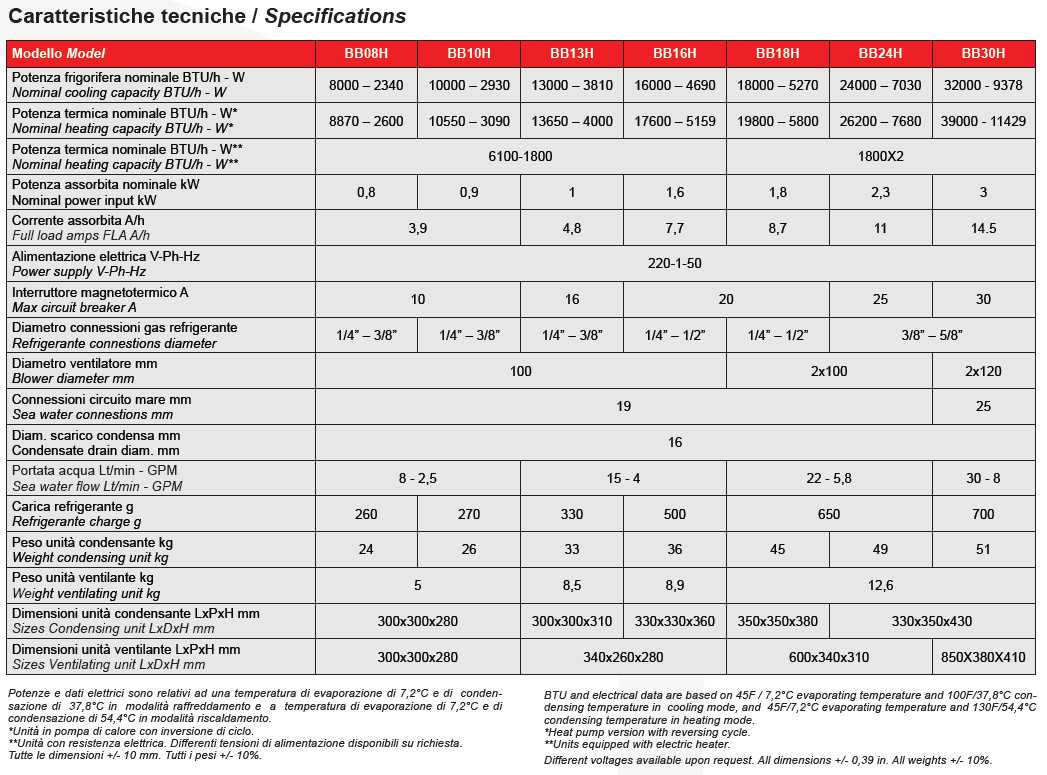

Model	BB08H	BB10H	BB13H	BB16H	BB18H	BB24H
Cooling capacity BTU/h – W	8000 – 2345	10000 – 2945	13000 – 3810	16000 – 4690	18000 – 5276	24000 – 7034
Heating capacity BTU/h – W	8870 – 2600	10550 – 3090	13650 – 4000	17600 – 5159	19800 – 5800	26200 – 7680
Heating capacity BTU/h – W	6100 – 1800	6100 – 1800	6100 – 1800	6100 – 1800	6100 – 1800	6100 – 1800
Power input kW	0,9	1,3	1,4	1,7	1,8	2,4
Load amps.A	4,2	4,9	6,5	8,5	10	12
Power supply V-Ph-Hz	220/1/50	220/1/50	220/1/50	220/1/50	220/1/50	220/1/50
Circuit breaker A	10	10	16	20	20	25
Refrigerante charge g	300	320	350	560	700	720
Weight condensing unit kg	24	26	33	36	45	49
Weight ventilating unit kg	5	5	8,5	8,9	12,6	12,6
Refrigerante connestions diameter	1/4″ – 3/8″	1/4″ – 3/8″	1/4″ – 3/8″	1/4″ – 1/2″	1/4″ – 1/2″	3/8″ – 5/8″
Blower diameter mm	100	100	100	100	2×100	2×100
Sea water connestions mm	19	19	19	19	19	19
Condensate drain diam. mm	16	16	16	16	16	16
Sizes condensing unit LxDxH mm	300x300x280	300x300x280	300x300x310	330x330x360	350x350x380	330x350x430
Sizes ventilating unit LxDxH mm	300x300x280	300x300x280	340x260x280	340x260x280	600x340x310	600x340x310
