Totem G – TMG

Standard versionTMG 600
Motor power500 W
Motor supply voltage12 V
Maximum pull620 kg
1367 lb
Maximum working load200 kg
441 lb
Working load65 Kg
143 lb
Current absorbtion @ working load (1)40 A
Maximum chain speed (2)15,4 m/min
50.5 ft/min
Maximum chain speed @ working load (2)11,9 m/min
39 ft/min
Weight9,5 Kg
20.9 lb
Kategorija:

Opis

totemg

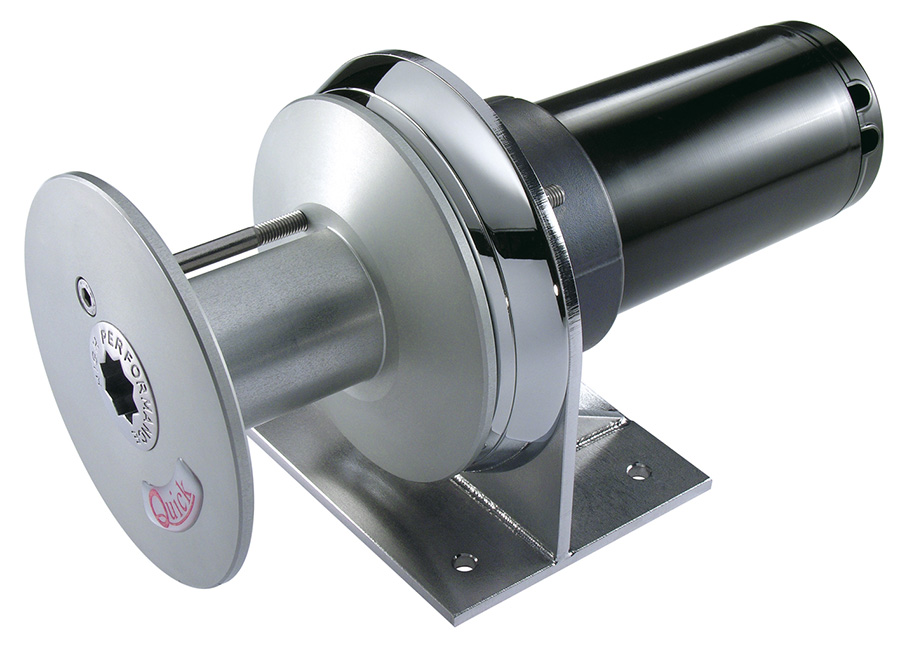

  • Capstan with roller for strap
  • AISI Stainless steel 316 base
  • IP66 motor watertight
  • Anodized aluminium epicyclical gearbox

The TMG capstan is equipped with an epicyclical gearbox, that provides much higher efficiency (40% compared to equivalent traditional gearboxes).
