THG

Standard version THG 500
Motor power 500 W
Motor supply voltage 12 V 24 V
Maximum pull 1200 Kg / 2645.6 lb
Maximum working load 600 Kg / 1322.8 lb 600 Kg / 1322.8 lb
Working load 200 Kg / 440.9 lb 200 Kg / 440.9 lb
Current absorbtion @ working load (1) 85 A 50 A
Maximum chain speed (2) 6,6 m/min
21.6 ft/min
7,1 m/min
23.3 ft/min
Maximum chain speed @ working load (2) 5,5 m/min
18 ft/min
5,8 m/min
19 ft/min
Ø Drum 105 mm / 4″ 9/64
Weight 14 Kg / 30.9 lb

Opis

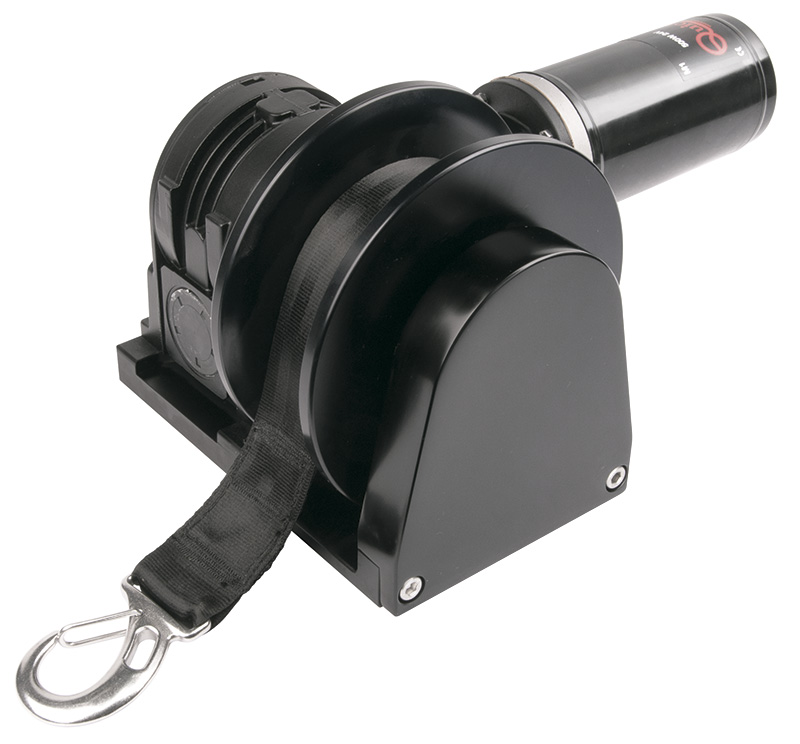

THG1000_v2



  • Capstans with strap-roller
  • Anodized aluminium base and drum
  • IP67 watertight motor (1000/1500W)
  • IP66 watertight (500W)
  • Anodized aluminium gearbox
