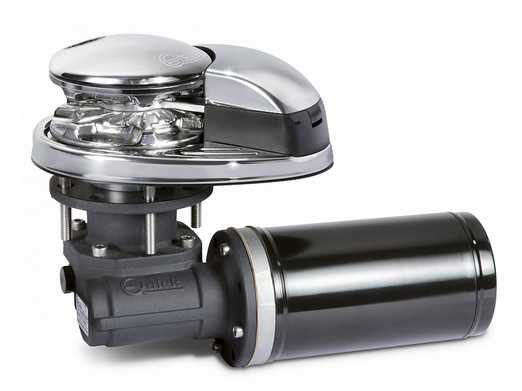

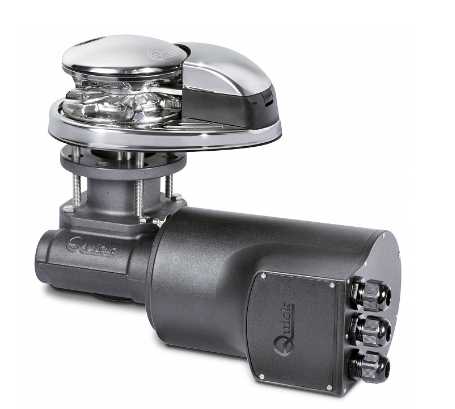

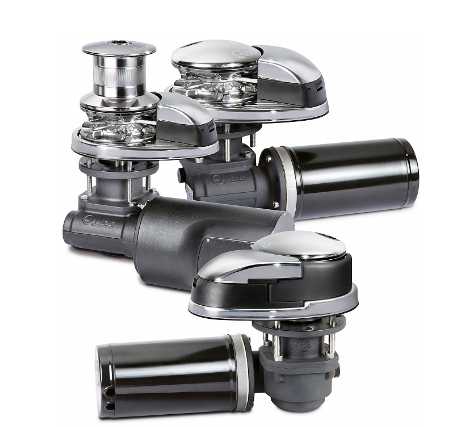

Prince – DP2

Prince – DP2

  • Vertical windlasses
  • Stainless steel Aisi 316 base

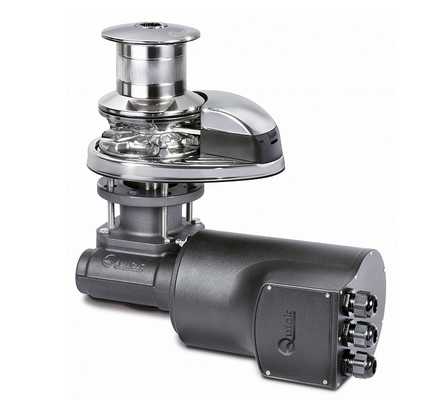

  • With and without drum
  • Rope and chain on a single gypsy
  • Integrated sensor and magnet for
    chain counter
  • Manual Free-Fall system
  • Supplied with pressure lever
  • Inspection lid
  • IP67 Motor watertight (700 – 1000 W)
  • IP66 Motor watertight (300 – 500 W)
  • Anodized aluminium gearbox



Kategorija: Oznaka:

Opis

for boats from 5 to 13 meters (16 – 43 ft)
DP300 W 12V5 – 7,5 m16 – 25 ft
DP500 W 12/24V5 – 9 m16 – 30 ft
DP500 W HS 12V5 – 7,5 m16 – 25 ft
DP500 W HS 24V5 – 9 m16 – 30 ft
DP700 W 12/24 V7 – 12 m23 – 40 ft
DP1000 W 12/24V8 – 13 m26 – 43 ft

The indication may vary according to the boat type and the anchor-rode type

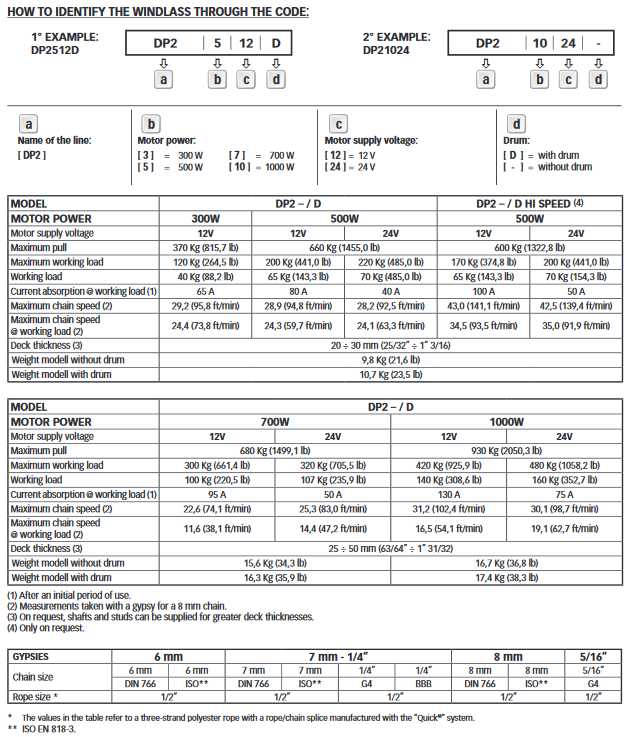

Standard versionDP2 300 / 300 D
Motor power300 W
Motor supply voltage12 V
Maximum pull370 Kg / 814 lb
Maximum working load120 Kg / 265 lb
Working load40 Kg / 88 Kg
Current absorbtion @ working load (1)65 A
Maximum chain speed (2)29,2 m/min / 95.8 ft/min
Maximum chain speed @ working load (2)24,4 m/min  / 80.1 ft/min
Weight – DP2 – [without drum]9,8 Kg / 21,6 lb
Weight – DP2 D – [with drum]10,7 Kg / 23,6 lb
1)After an initial period of use

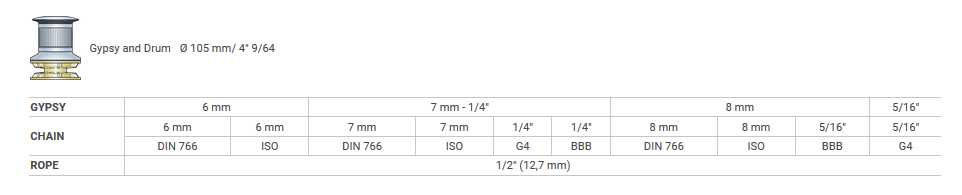

2)Measurements taken with a gypsy for a 8 mm chain



Standard versionDP2 500 / 500 D
Motor power500 W
Motor supply voltage12 V24 V
Maximum pull660 Kg / 1455 lb
Maximum working load200 Kg / 441 lb220 Kg / 485 lb
Working load65 Kg / 143 lb70 Kg / 154 lb
Current absorbtion @ working load (1)80 A40 A
Maximum chain speed (2)28,9 m/min
94.8 ft/min		28,2 m/min
92.5 ft/min
Maximum chain speed @ working load (2)24,3 m/min
79.7 ft/min		24,1 m/min
79.1 ft/min
Weight – DP2 – [without drum]9,8 Kg / 21.6 lb
Weight – DP2 D – [with drum]10,7 Kg / 23.6 lb
HI-SPEED versionDP2 500 HS / 500 D HS
Motor power500 W
Motor supply voltage12 V24 V
Maximum pull600 Kg | 1323 lb
Maximum working load170 Kg / 375 lb200 Kg / 441lb
Working load65 Kg / 143 lb70 Kg / 154 lb
Current absorbtion @ working load (1)100 A50 A
Maximum chain speed (2)43 m/min
141,1 ft/min		42.5 m/min
139,4 ft/min
Chain speed @ working load (2)34,5 m/min
113,2 ft/min		35 m/min
114,8 ft/min
Weight – DP2 – [without drum]9,8 Kg / 21.6 lb
Weight – DP2 D – [with drum]10,7 Kg / 23.6 lb



Standard versionDP2 1000 / 1000 D
Motor power1000 W
Motor supply voltage12 V24 V
Maximum pull930 Kg / 2050 lb
Maximum working load420 Kg
926 lb		480 Kg
1058 lb
Working load140 Kg
309 lb		160 Kg
353 lb
Current absorbtion @ working load (1)130 A75 A
Maximum chain speed (2)31,2 m/min
102.4 ft/min		30,1 m/min
98.8 ft/min
Maximum chain speed @ working load (2)16,5 m/min
54.1 ft/min		19,1 m/min
62.7 ft/min
Weight – DP2 – [without drum]16,7 Kg / 36.8 lb
Weight – DP2 – [with drum]17,4 Kg / 38.4 lb
