BAITEK NAUTILIUS

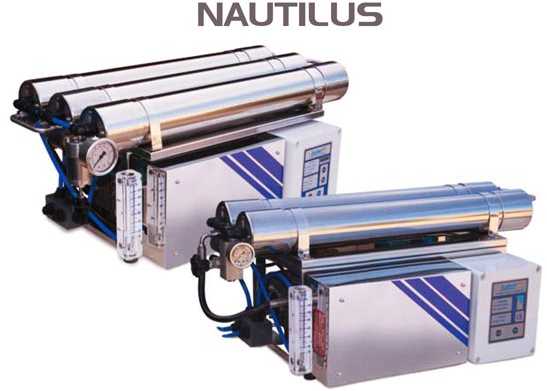

The “NAUTILUS” Watermaker Series has been developed to be adopted in the nautical fi eld, it can be powered from the batteries and it comes proposed at 24 or 12 volt. It is the ideal solution for all boats without an electrical generator at 220 volt.
They satisfy the requirement of fresh water on small and medium sized boats

Kategorija: Oznaka:

Opis

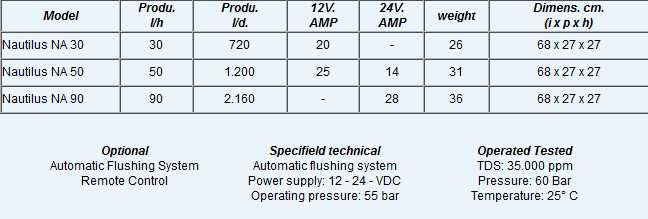

ModelProdu.
l/h		Produ.
l/d.		12V.
AMP		24V.

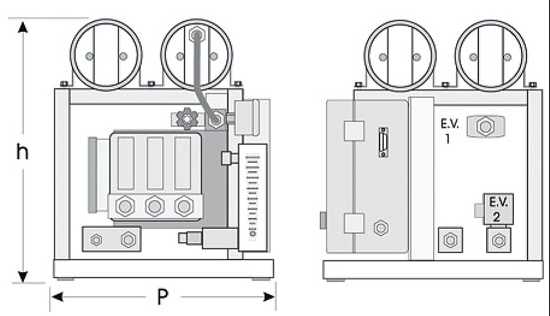

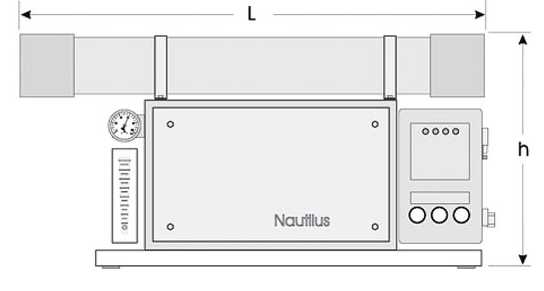

AMP		weightDimens. cm.
(i x p x h)
Nautilus NA 303072020–2668 x 27 x 27
Nautilus NA 50501.20025143168 x 27 x 27
Nautilus NA 90902.160–283668 x 27 x 27
Optional
Automatic Flushing System
Remote Control		Specifield technical
Automatic flushing system
Power supply: 12 – 24 – VDC
Operating pressure: 55 bar 		Operated Tested
TDS: 35.000 ppm
Pressure: 60 Bar
Temperature: 25° C



  • Structure in stainless steel;
  • High pressure pump with pistons in ceramics;
  • Stainless steel AISI 316 valve for regulating the pressure;
  • Vessels AISI 316 and epoxy resin composite structure;
  • Membranes for high flow inverse osmosis;
  • Connections for high pressure circuit in INOX 316L;
  • Safety pressure switch with machine blocking in case of high working pressure;
  • Inox Gauge in glycerin for the control of the working pressu
