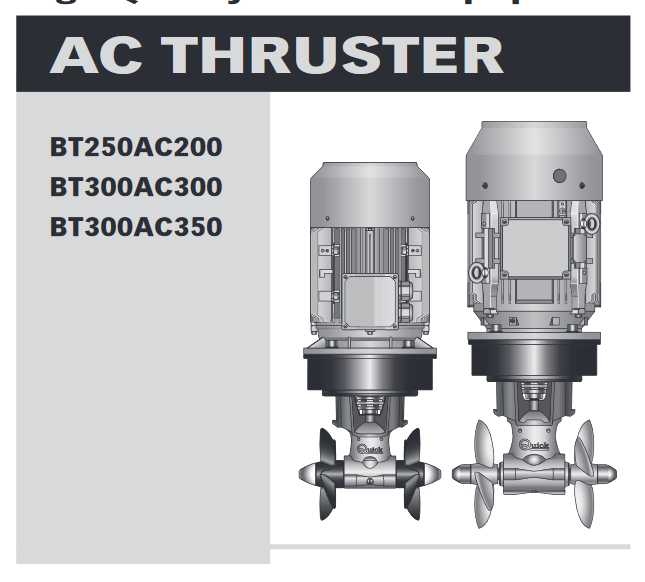

AC Thruster Quick BTAC 250 – 513

   TYPE APPROVAL

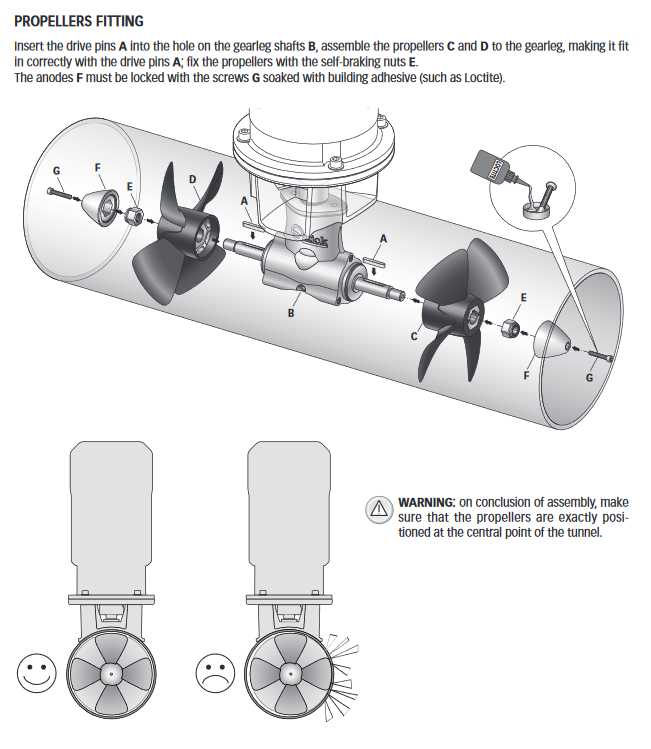

  • Double propellers made in NIBRAL.
  • Recommended boat length from 32-48 m (105-155 ft).
  • Gearbox in bronze.
  • Zinc anode independent from the gearbox and hence easy replaceable.
  • Equipped with elastic coupling.

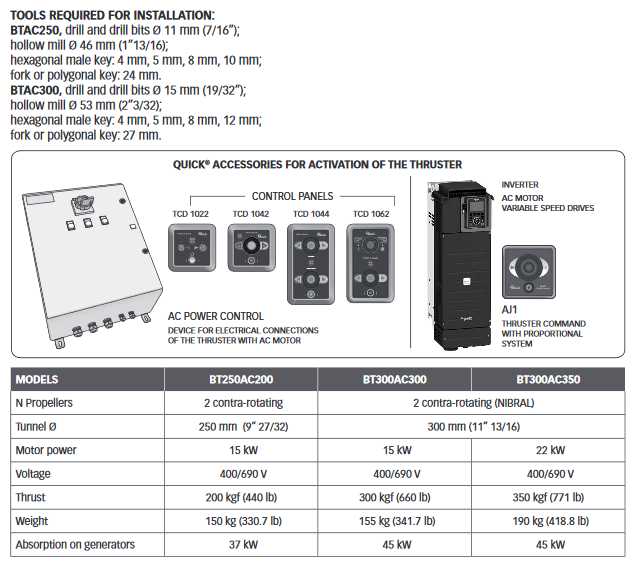

Optional accessories

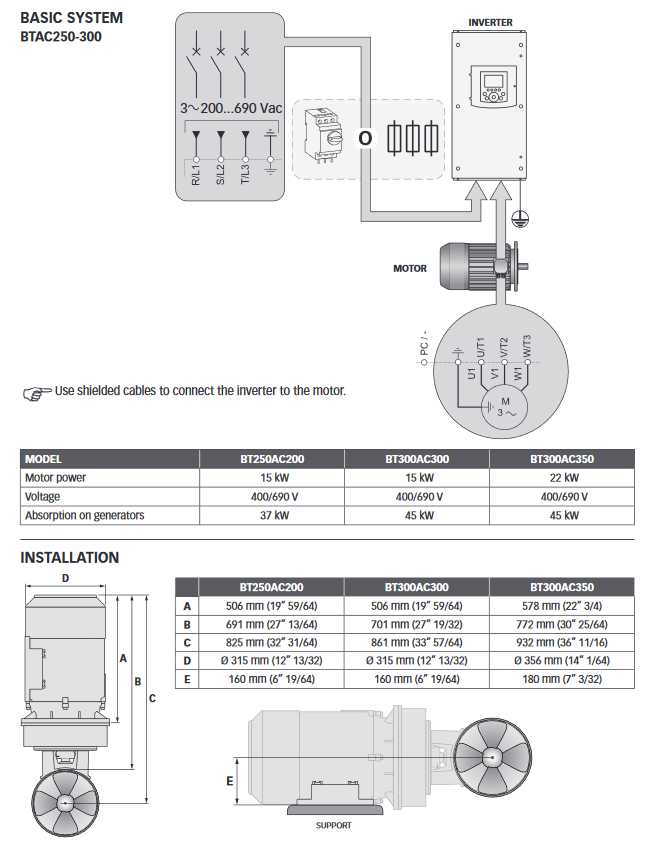

AC POWER CONTROL
Device for the electrical connections of the thruster with AC motor.

Double propeller (NIBRAL)
400/690 Vac 75 kW
Tunnel 20″ 13/64
Boat size 105-155 ft

Kategorija: Oznaka:

Opis

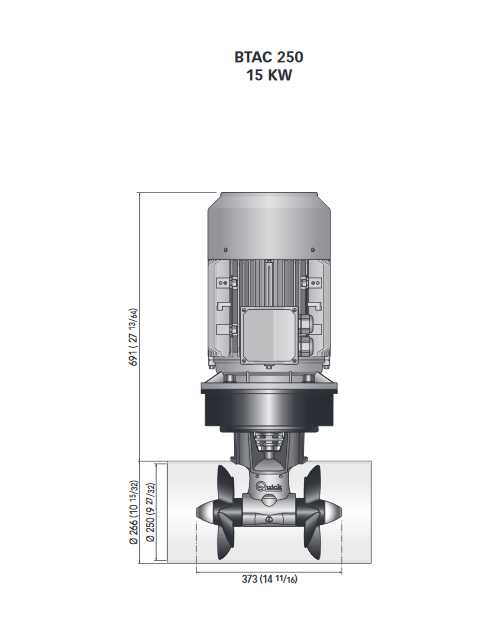

MODELBTAC 250-200
Propulsion systemDouble propeller
Tunnel Diameter250 mm
9″ 27/32
Motor power15 Kw
Voltage400/690 Vac
Thrust200 Kgf (440 lb)
Weight160 kg
440 lb
Boat size18 – 22 m
59 – 72 ft

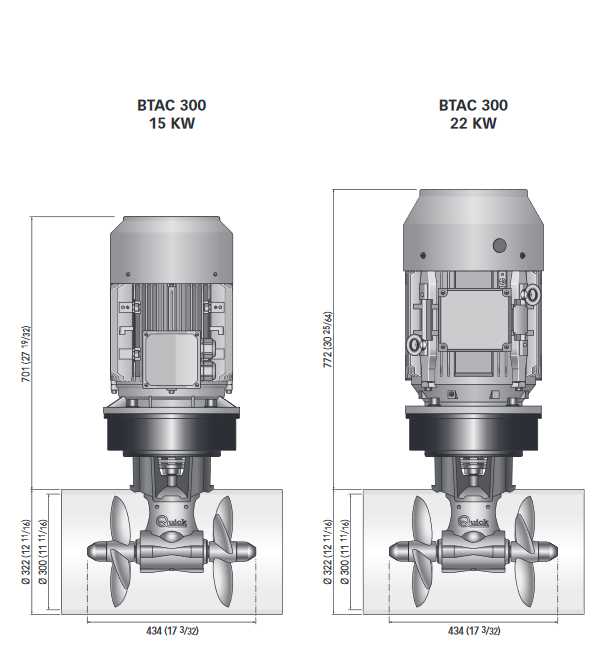

MODELBTAC 300-350
Propulsion systemDouble propeller (NIBRAL)
Tunnel Diameter300 mm
11″ 13/16
Motor power22 Kw
Voltage400/690 V
Thrust350 Kgf (771 lb)
Weight216 kg
476.2 lb
Boat size28 – 34 m
92 – 111 ft



MODELBTAC 386-460
Propulsion systemDouble propeller contra-rotating (NIBRAL)
Tunnel Diameter386 mm
15″ 13/64
Motor power37 Kw
Voltage380/690 V
Thrust460 Kgf (1104 lb)
Weight375 kg
826.7.6 lb
Boat size25 – 40 m
82- 131 ft



MODELBTAC 513-1000
Propulsion systemDouble propeller contra-rotating (NIBRAL)
Tunnel Diameter513 mm
20″ 13/64
Motor power75 Kw
Voltage400/690 V
Thrust1000 Kgf
2205 lb
Weight742 kg
1635.8 lb
Boat size32 – 48 m
105- 155 ft
