Regal – RG5 XY

Standard versionRG5 1700 X/Y – 1700 X/Y D
Motor power1700 W
Motor supply voltage24 V
Maximum pull1200 Kg / 2646 lb
Maximum working load570 Kg / 1257 lb
Working load190 Kg / 419 lb
Current absorbtion @ working load (1)100 A
Maximum chain speed (2)38,3 m/min / 125.7 ft/min
Maximum chain speed @ working load (2)20,8 m/min / 68.2 ft/min
Weight – Regal – [without drum]34,6 Kg / 76,3 lb
Weight – Regal D – [with drum]39 Kg / 86 lb
Kategorija:

Opis

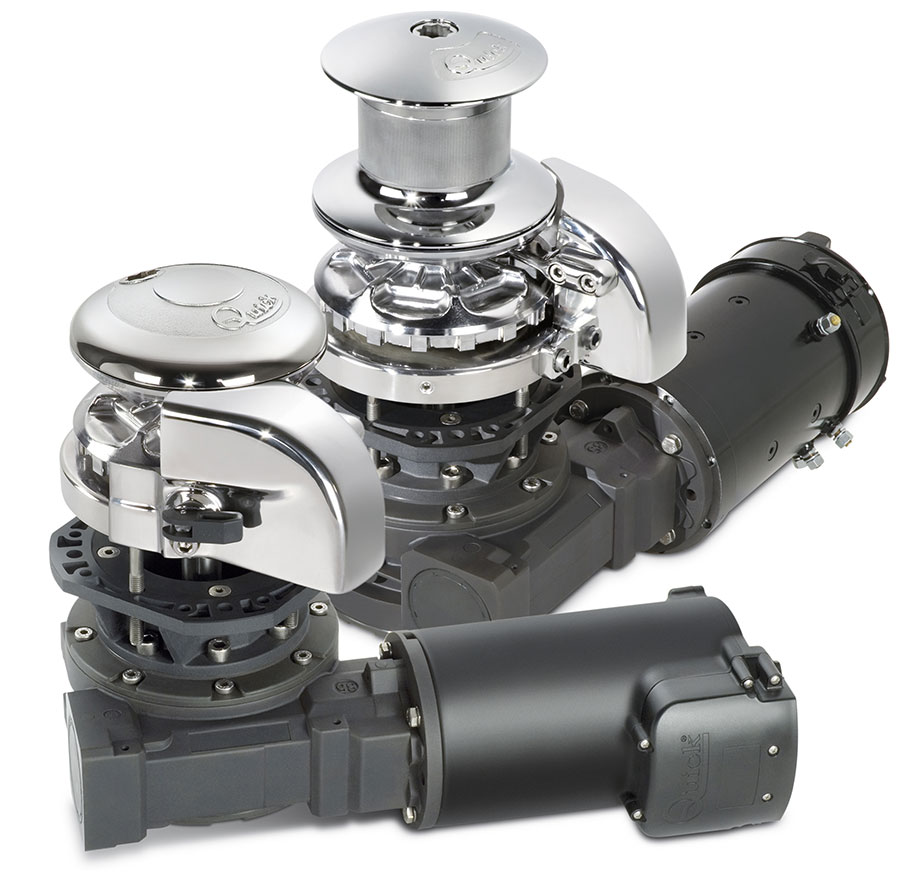

regalgroup



  • Vertical windlasses
  • Base in anodized aluminium
  • With and without drum
  • Right or left pipe chain
  • Integrated sensor and magnet for chain counter
  • Manual Free-Fall system
  • IP67 motor watertight (1700 W)
  • IP66 motor watertight (2000/2300W)
  • Anodized aluminium gearbox
For boats from 7 to 24 meters (23 – 79 ft)
Regal1700 W DC12 – 16 m39 – 52 ft
Regal2000 W DC16 – 20 m52 – 66 ft
Regal2300 W DC20 – 24 m69 – 79 ft
Regal3000 W DC/AC20 – 24 m66 – 79 ft
RegalHYDRO 12 – 24 m39 – 79 ft
