Brodska klima – MBC SSC Marine air units

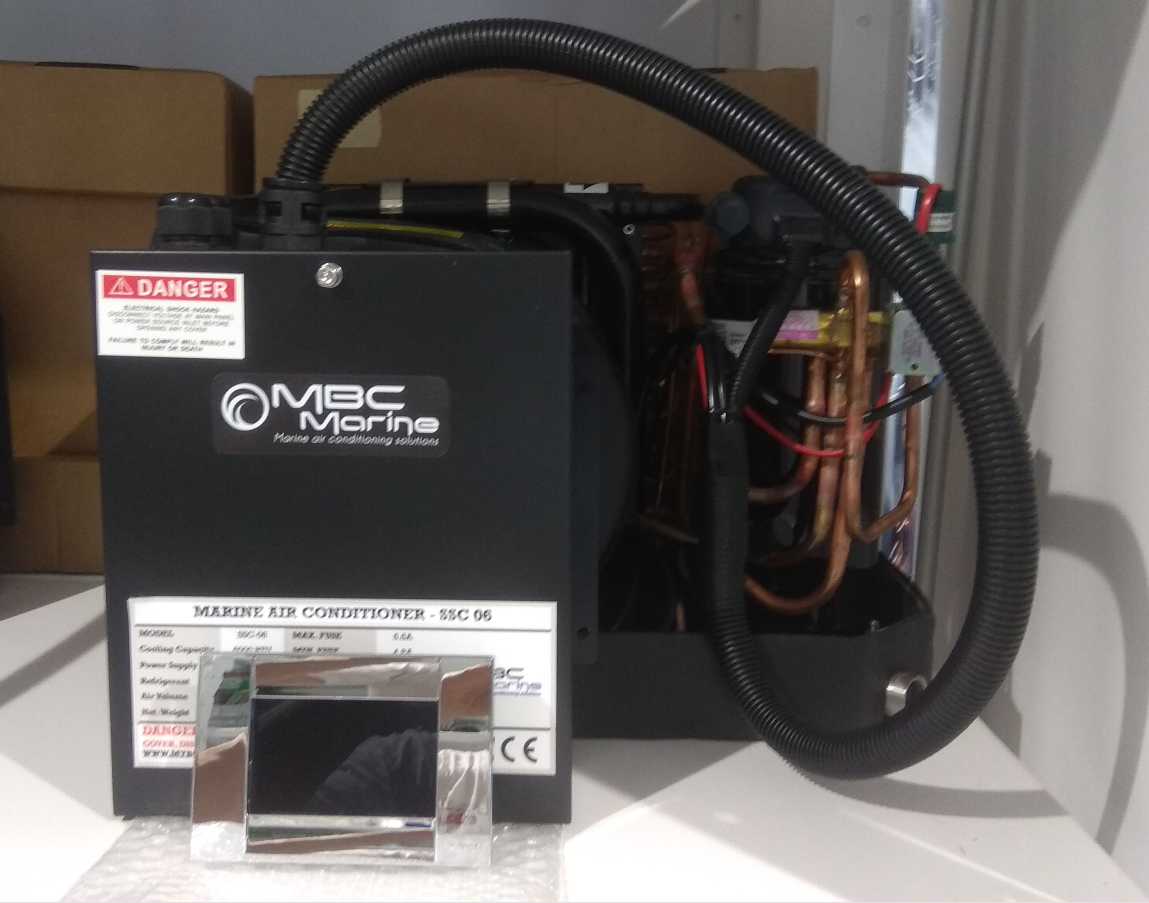

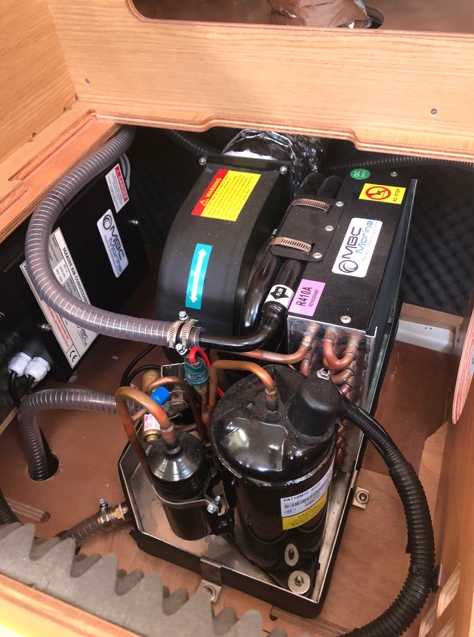

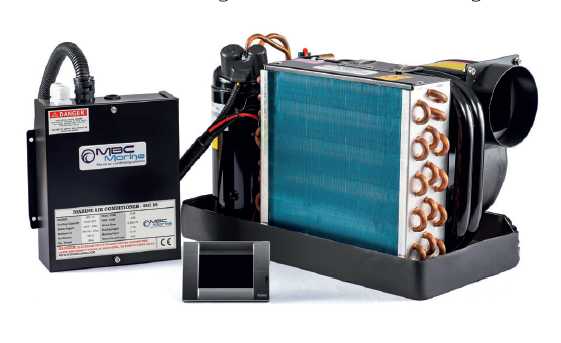

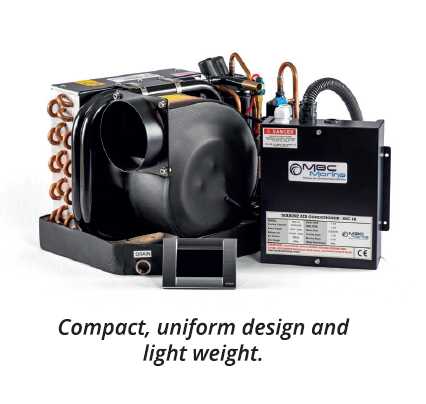

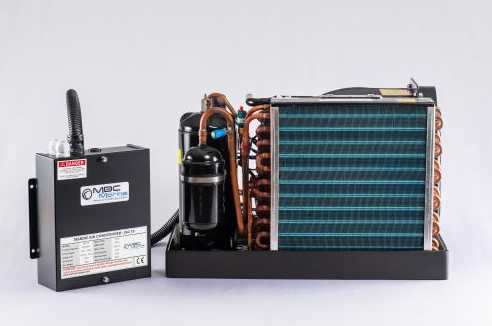

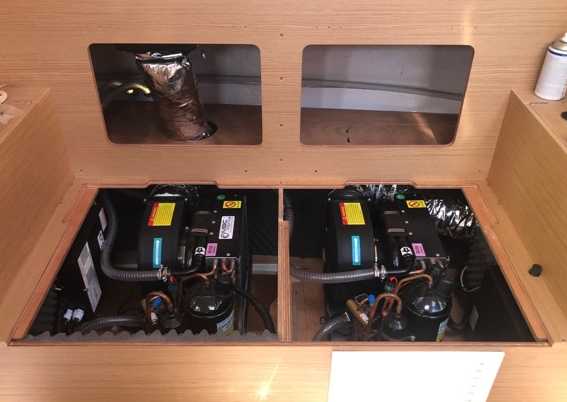

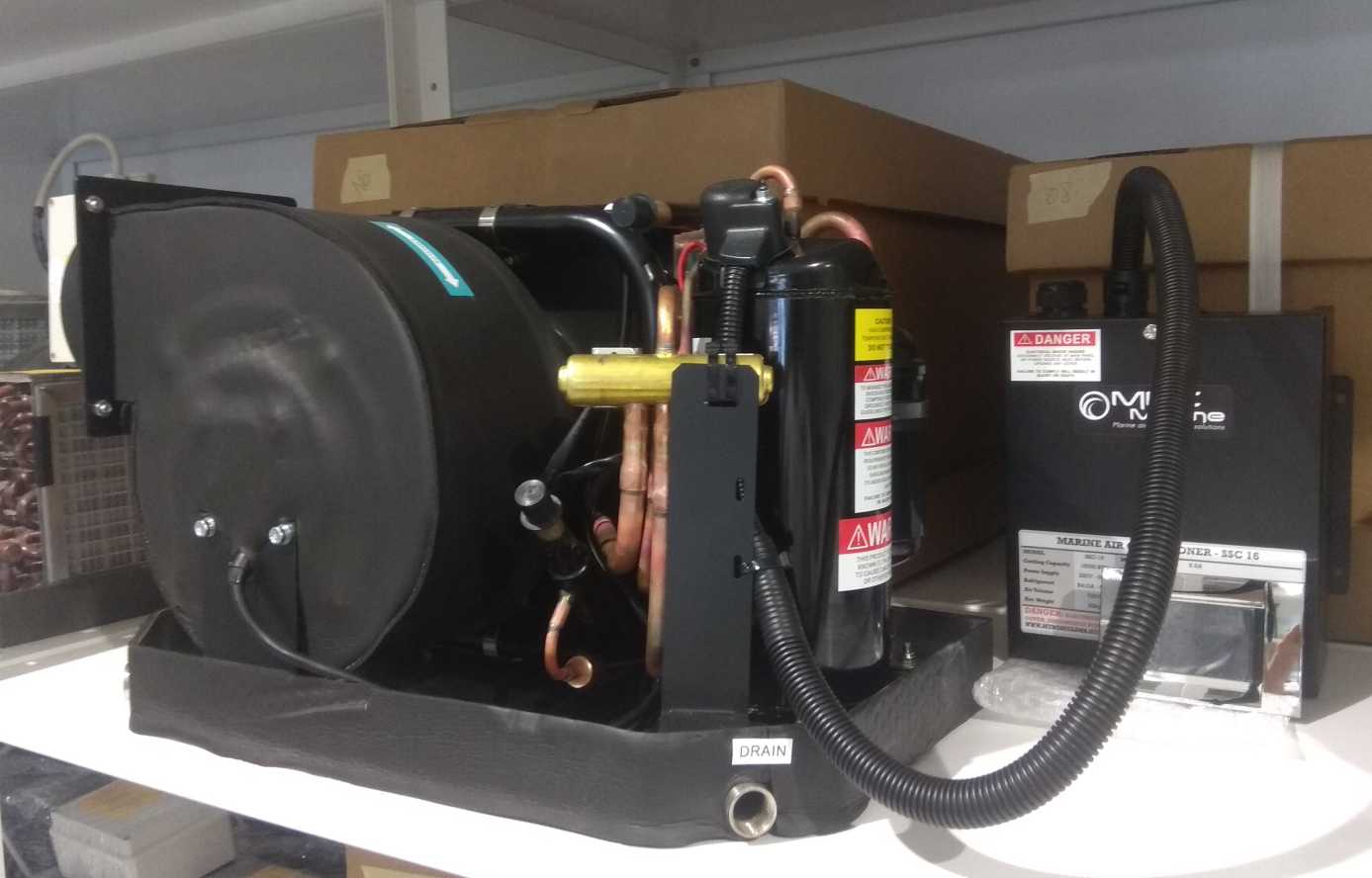

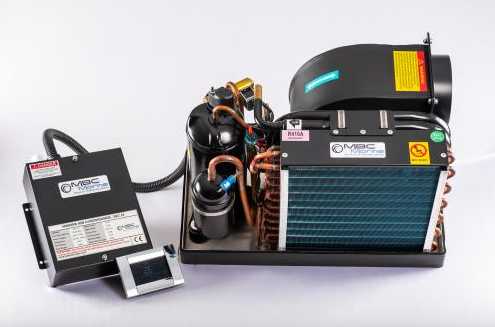

MBC SSC equipments are self contained direct expansion systems specifically developed for boats ideal for simultaneous cooling and heating of one or more cabins. MBC Marine – SSC equipments are carefully designed to be lightweight and compact, for a quick and easy installation in any suitable room of every boat. The base plates of these units are entirely made of AISI 316 stainless steel, which assures a long service life and allows the collection of a large amounts of condensate water.

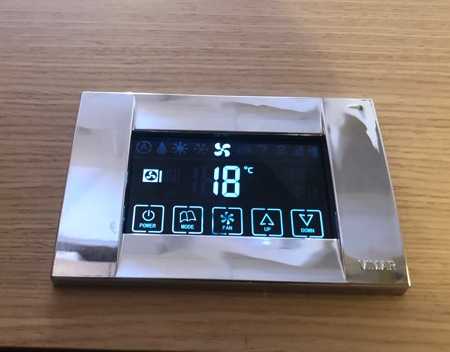

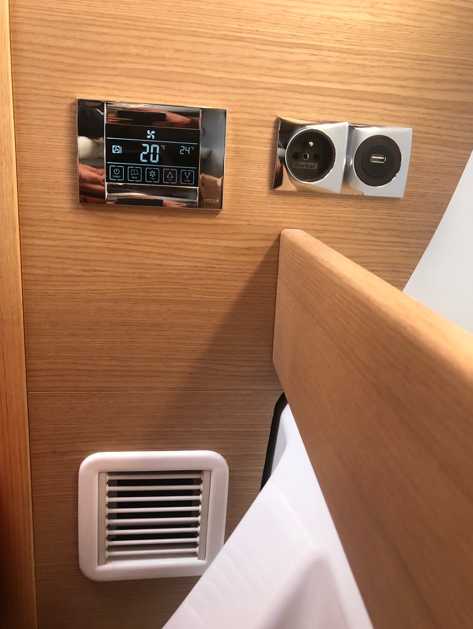

The SSC range is provided with an elegant LCD backlight digital control panel as a part of the standard installation kit. SSC systems are all available in heat pump version and in 5 sizes ranging from 6.000 to 16.000 BTU/h.

Opis

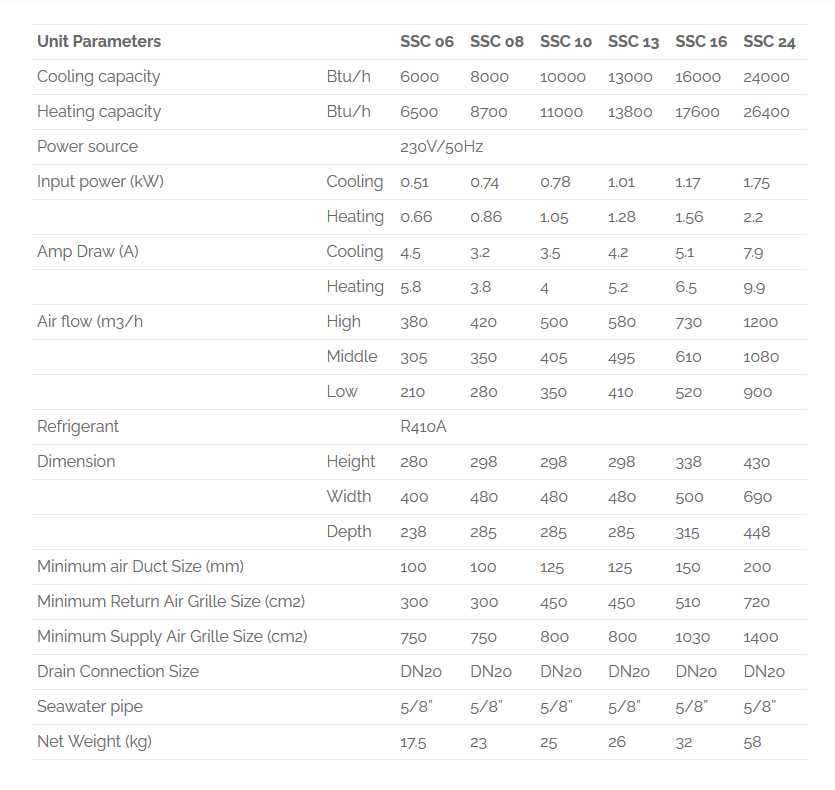

Unit Parameters		SSC 06	SSC 08	SSC 10	SSC 13	SSC 16	SSC 24
Cooling capacity	Btu/h	6000	8000	10000	13000	16000	24000
Heating capacity	Btu/h	6500	8700	11000	13800	17600	26400
Power source		230V/50Hz
Input power (kW)	Cooling	0.51	0.74	0.78	1.01	1.17	1.75
	Heating	0.66	0.86	1.05	1.28	1.56	2.2
Amp Draw (A)	Cooling	4.5	3.2	3.5	4.2	5.1	7.9
	Heating	5.8	3.8	4	5.2	6.5	9.9
Air flow (m3/h	High	380	420	500	580	730	1200
	Middle	305	350	405	495	610	1080
	Low	210	280	350	410	520	900
Refrigerant		R410A
Dimension	Height	280	298	298	298	338	430
	Width	400	480	480	480	500	690
	Depth	238	285	285	285	315	448
Minimum air Duct Size (mm)		100	100	125	125	150	200
Minimum Return Air Grille Size (cm2)		300	300	450	450	510	720
Minimum Supply Air Grille Size (cm2)		750	750	800	800	1030	1400
Drain Connection Size		DN20	DN20	DN20	DN20	DN20	DN20
Seawater pipe		5/8”	5/8”	5/8”	5/8”	5/8”	5/8”
Net Weight (kg)		17.5	23	25	26	32	58
