FC Fan coil 5.000-24.000 BTU/h

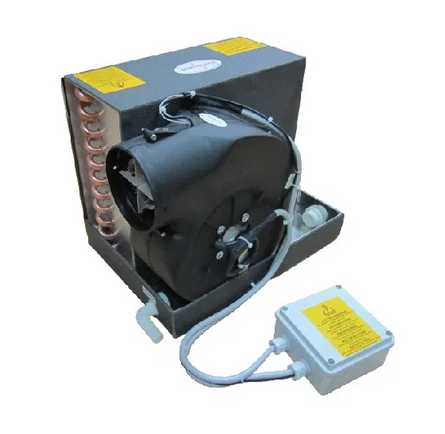

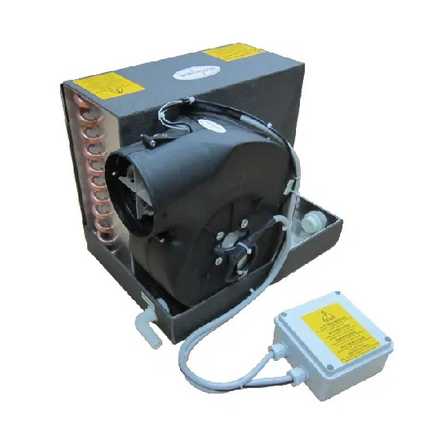

FC series of fan coils, also named air handler, are properly designed for marine applications. They can be easily ducted in order to distribute the air into the ambient from several points (air outlets). These models are suitable for installation in the lower part of the vessel, inside a cabinet or under a sofa or a bed.

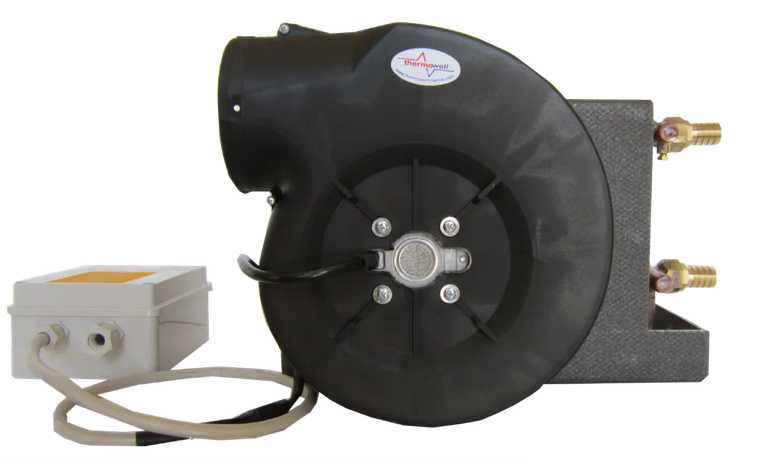

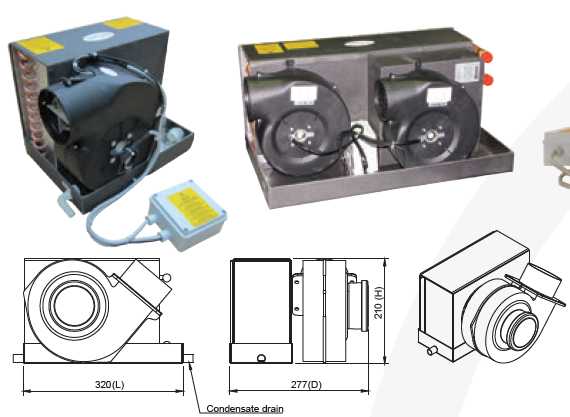

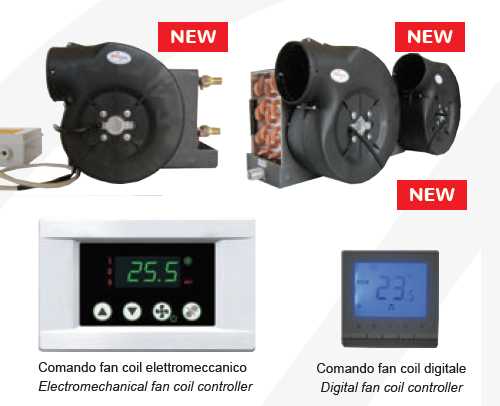

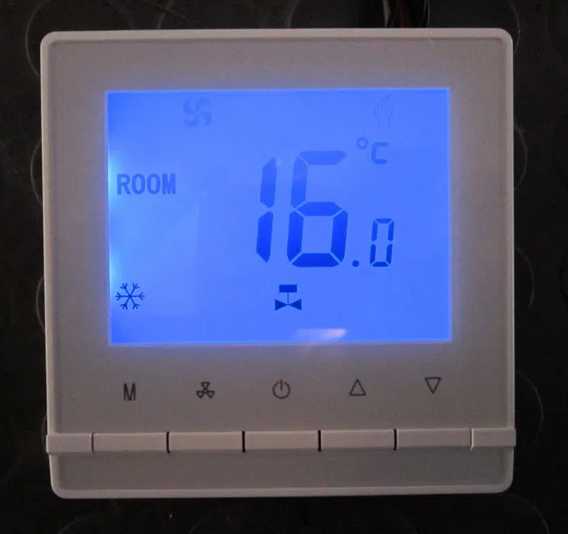

FC models consist mainly in the following components: finned coil (water/air heat exchanger), high pressure centrifugal blower(s) equipped with internal high efficiency motor, deep stainless steel drain pan equipped with two holes for drain discharge, bleeder valve, fresh water inlet and outlet connection. Available in 7 sizes ranging from 5.000 to 24.000 BTU/h; FC18 and FC 24 models are equipped with two blowers.

Opis

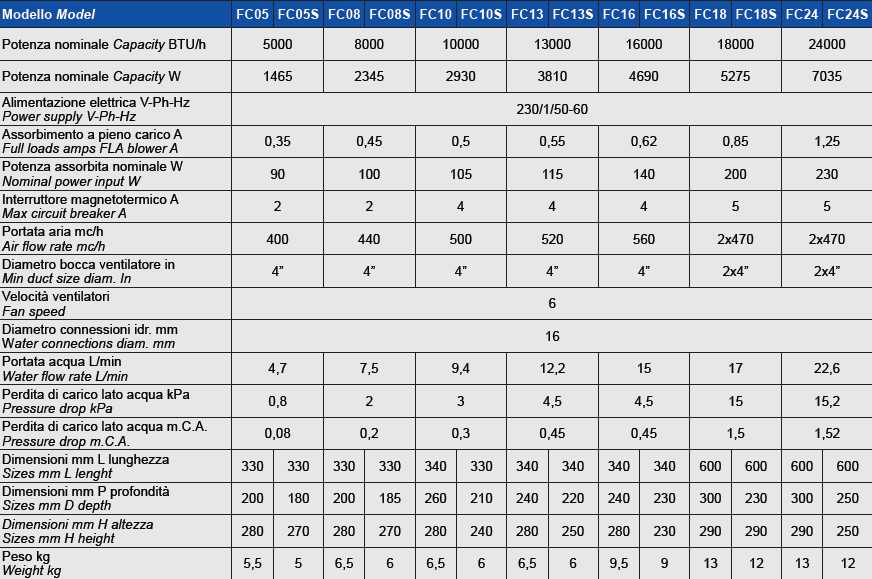

Model	FC05 – FC05S	FC08 – FC08S	FC10 – FC10S	FC13 – FC13S	FC16 – FC16S	FC18 – FC18S	FC24 – FC24S
Capacity BTU/h	5000 – 1465	8000 – 2345	10000 – 2930	13000 – 3810	16000 – 4690	18000 – 5275	24000 – 7035
Power supply V-Ph-Hz	230/1/50-60	230/1/50-60	230/1/50-60	230/1/50-60	230/1/50-60	230/1/50-60	230/1/50-60
Full loads amps FLA blower A	0,35	0,45	0,50	0,55	0,62	0,85	1,25
Nominal power input W	90	100	105	115	140	200	230
Max circuit breaker A	2	2	4	4	4	5	5
Air flow rate mc/h	400	440	500	520	560	2×470	2×470
Sizes mm	330x200x280 – 330x180x170	330x200x280 – 330x185x270	340x260x280 – 330x210x240	340x240x280 – 340x220x250	340x240x280 – 340x230x230	600x300x290 – 600x230x290	600x300x290 – 600x250x250
Min duct size diam. In	4″	4″	4″	4″	4″	2×4″	2×4″
Fan speed	6	6	6	6	6	6	6
Water connections diam. mm	16	16	16	16	16	16	16
Water flow rate L/min	4,7	7,5	9,4	12,2	15	17	22,6
Pressure drop kPa	0,8 – 0,08	2 – 0,2	3 – 0,3	4,5 – 0,45	4,5 – 0,45	15 – 1,5	15,2 – 1,52
Weight kg	5,5	6,5	6,5	6,5	9,5	13	13
