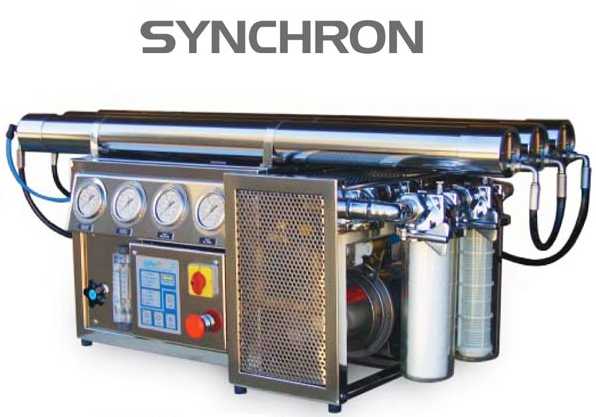

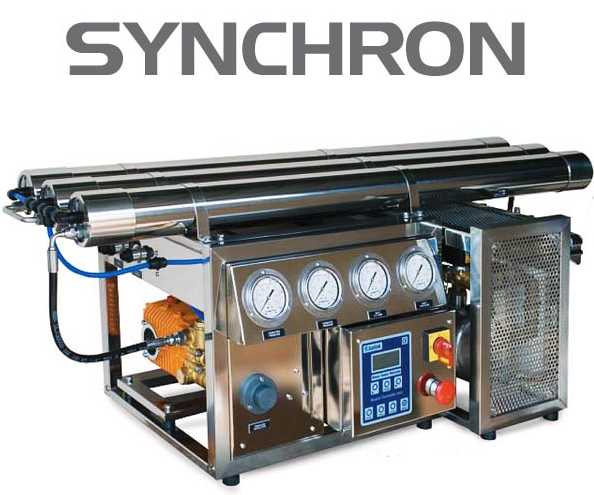

BAITEK SYNCHRON

The Synchron watermakers meet the fresh water’s requirements for every kind of boat,from sailing boat to max- yacht and working boats too.
The Synchron watermakers are entirely made of stainless steel.
The peculiarity of synchron watermakers is to be made of three sections, that in case of necessity,in the board installation, in limited spaces, can be divided in a simple way.
Vessels containing osmotic membranes are made of AISI 316 composite structure and epoxy resin.
Thanks to these characteristics, they are absolutely resistant against corrosion caused by galvanic effects.

Kategorija: Oznaka:

Opis

Standard equipment – automatic version
  • Automatic valve (Shift) for automatic regulation the pressure inox AISI 316L;
  • /visivo per acqua non conforme ed eventuale blocco macchina al persistere dell’allarme / Salinity meter with visual and acoustic alarm;
  • Probes for the visualization the pressures;
  • Flow meter for the fresh water produced;
  • High pressure pump with ceramic piston;
  • Vessels AISI 316 and epoxy resin composite structure;
  • High flow reverse osmosis membranes;
  • High pressure fittings in AISI 316L stainless steel;
  • Flushing monitor for the fresh water produced;
  • Inox pressure gauges, glycerine made, for working pressure;
  • Double pre-water filtering system;
  • Filter containers with brass chromium-plated head;
  • Structure in stainless steel.



Standard equipment – manual version
  • Valve for regulation the pressure inox AISI 316L;
  • High pressure pump with ceramic piston;
  • Vessels AISI 316 and epoxy resin composite structure;
  • High flow reverse osmosis membranes;
  • High pressure fittings in AISI 316L stainless steel;
  • Flushing monitor for the fresh water produced;
  • Inox pressure gauges, glycerine made, for working pressure;
  • Double pre-water filtering system;
  • Filter containers with brass chromium-plated head;
  • Structure in stainless steel;



Technical Characteristics
  • Automatic flushing sistem to every cicle of operation;
  • Grafic display high brightness;
  • Visualization of the pressure for operation digital and analogical;
  • Visualization of the pressure of entry digital and analogical;
  • Automatic over pressure shut down with acoustic and visual alarm;
  • Automatic low pressure shut down with acoustic and visual alarm;
  • Alarm for cartridges filters clogged;
  • Visualization message substitution cartridges filter;
  • Visualization warning message for change oil pump;
  • Automatic shut down for max level tank;
  • Automatic shut down to programmed time;
  • Automatic shut down for product quantity;
  • Possibility of planning with metric system or U.S. standard.

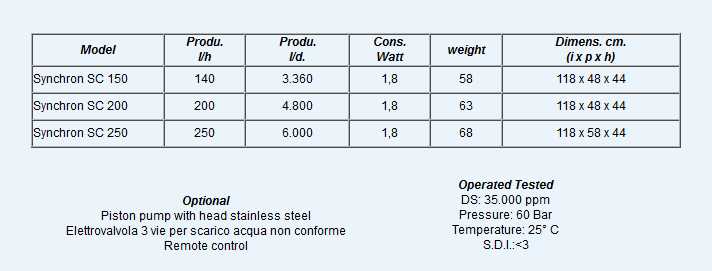

ModelProdu.
l/h
Produ.
l/d.
Cons.
Watt

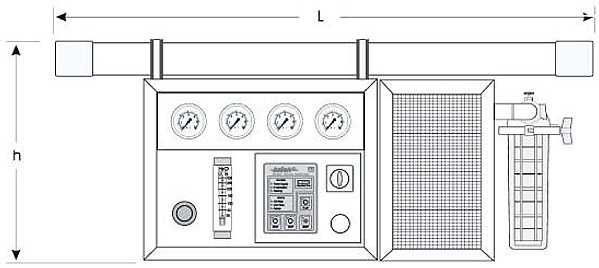

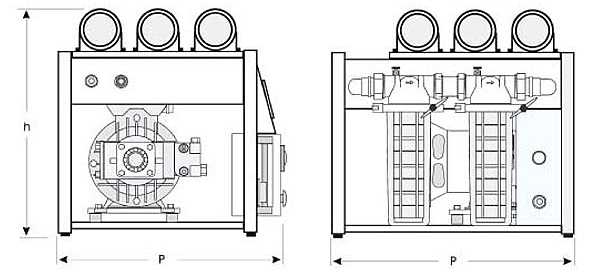

weightDimens. cm.
(i x p x h)
Synchron SC 1501403.3601,858118 x 48 x 44
Synchron SC 2002004.8001,863118 x 48 x 44
Synchron SC 2502506.0001,868118 x 58 x 44
