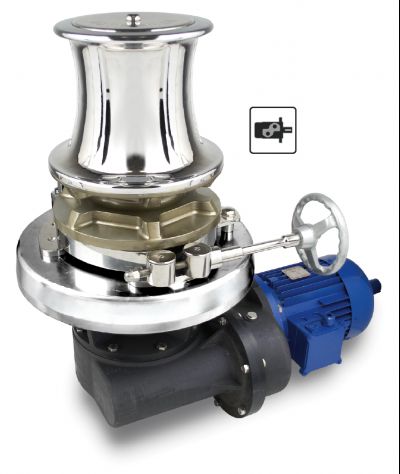

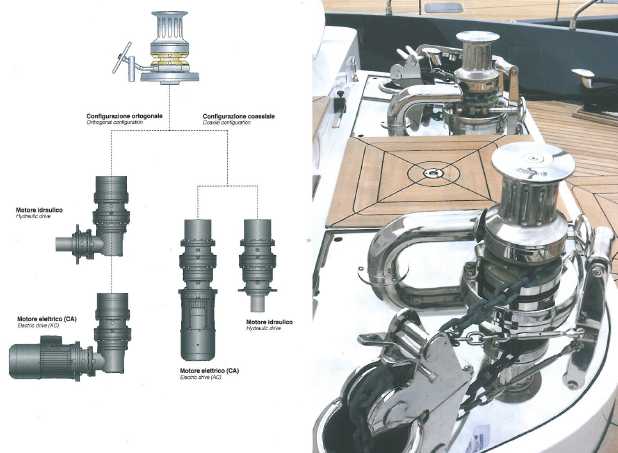

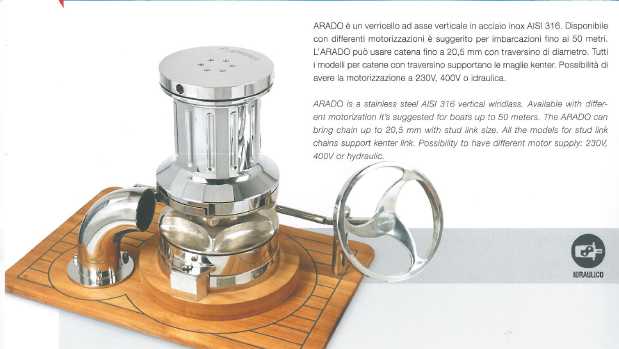

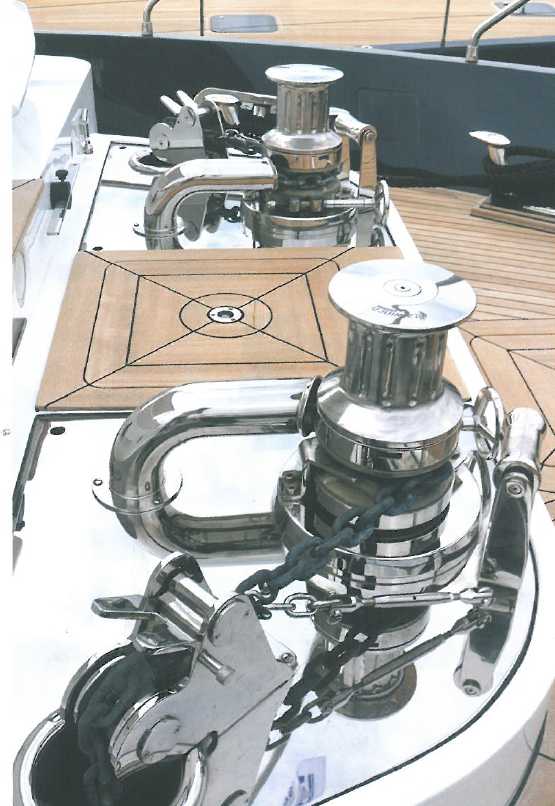

ARADO is a stainless steel A/SI 316 vertical windlass. Available with differ• ent motorization it‘s suggested for boats up to 50 meters. The ARADO can bring chain up to 20,5 mm with stud link size. All the models for stud link chains support kenter link. Possibility to have different motor supply: 230\1,
Bronze – Chromed bronze or stainless steel vertical windlass. Available in high or low profile, with different drives and recommended for boats up to 60 m. ARADO PLUS can use chains up to 24 mm With stud link in diameter. Possibility of 230V, 400V or hydraulic drive

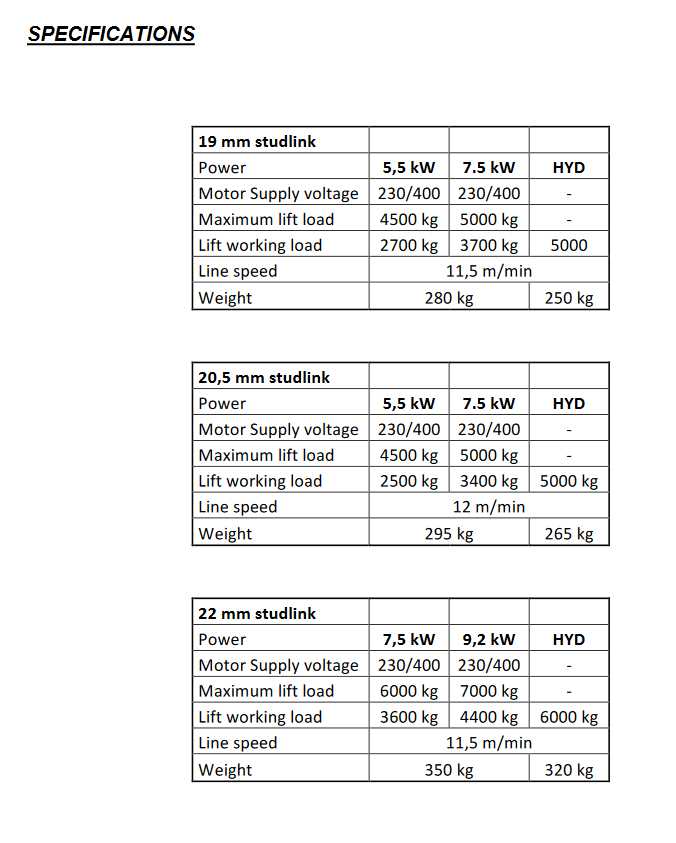

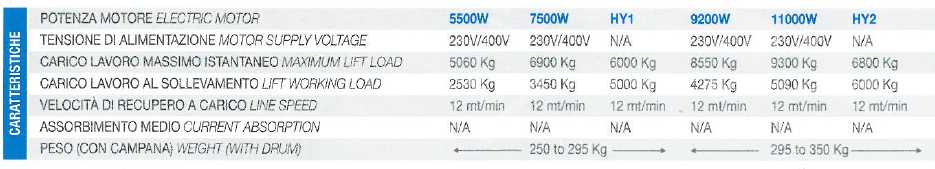

| ELECTRIC MOTOR | 7500W | 9200W | 11000W |
| MOTOR SUPPLY VOLTAGE | 230V/400V | 230V/400V | 230V/400V |
| MAXIMUM LIFT LOAD | 4400 Kg | 5300 Kg | 6600 Kg |
| LIFT WORKING LOAD | 3300 Kg | 4000 Kg | 5000 Kg |
| LOINE SPEED | 10 mt/min | 10 mt/min | 10 mt/min |
| CURRENT ABSORBTION | N/A | N/A | N/A |
| WEIGHT (WITH DRUM) | N/A | N/A | N/A |
| WEIGHT (WITHOUT DRUM) | – | – | – |

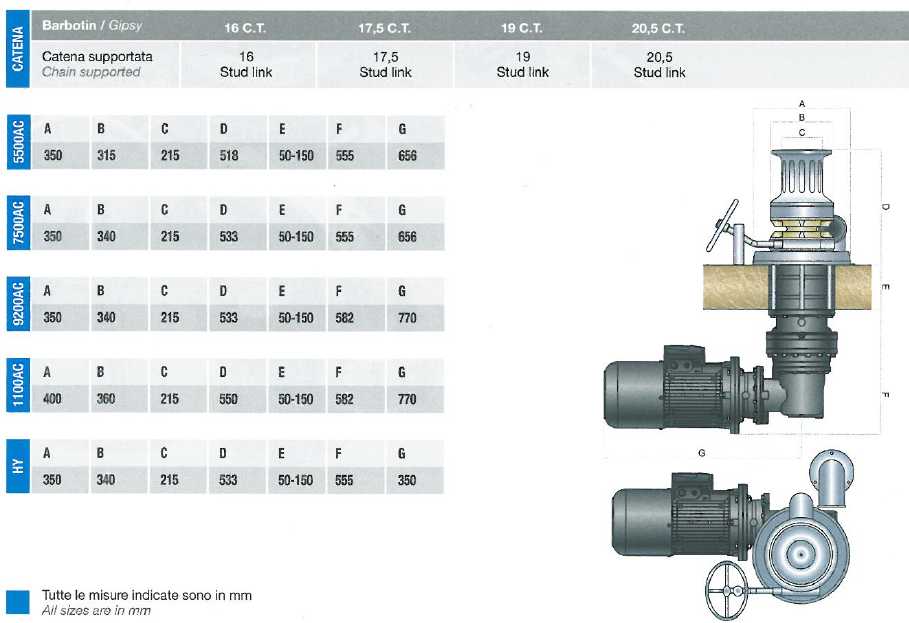

| CHAIN | 18mm ISO – 17,5mm with stud link – 19mm with stud link – 20,5mm with stud link | ||
